Surge Scientific · Model MI0102011 · Nextirrer® "Godzilla"
Nextirrer® 5" Glass Top Magnetic Stirrer
LED Digital Display
Φ135 mm Plate · 50–1500 RPM Touch Control · 5 L Capacity · 20 W Wear-Free Drive · IP65
The Nextirrer® "Godzilla" is built for labs that have outgrown a mini stirrer but don't need a hotplate underneath. 5 liters of stirring capacity across a Φ135 mm tempered glass plate, driven by a 20 W wear-free motor with no brushes to fail — controlled by a touch screen and a precise LED setpoint that you can write into a protocol and reproduce next month, next year, or in another lab entirely.
Why Setpoint Precision Matters at Scale
A 5-liter batch is where shear errors stop being academic. The same vortex that's "about right" for a beaker becomes the difference between a uniform suspension and a settled cake at 5L scale — and an analog knob has no way to record what speed actually delivered the result you want. Reproducing yesterday's run becomes guesswork.
The Nextirrer® uses a touch-screen LED interface that lets you dial in any value across 50–1500 RPM, log it precisely, and run a timed protocol up to 99h 59min without touching the unit again. Same setpoint, same timer, same vortex — every batch, every operator, every time.
5 L Capacity · 20 W Drive
Handles 5 liters of water across the full speed range, and 3 L even at the top 1500 RPM. The 20 W brushless drive is sized for sustained mixing of viscous reagents and large beakers.

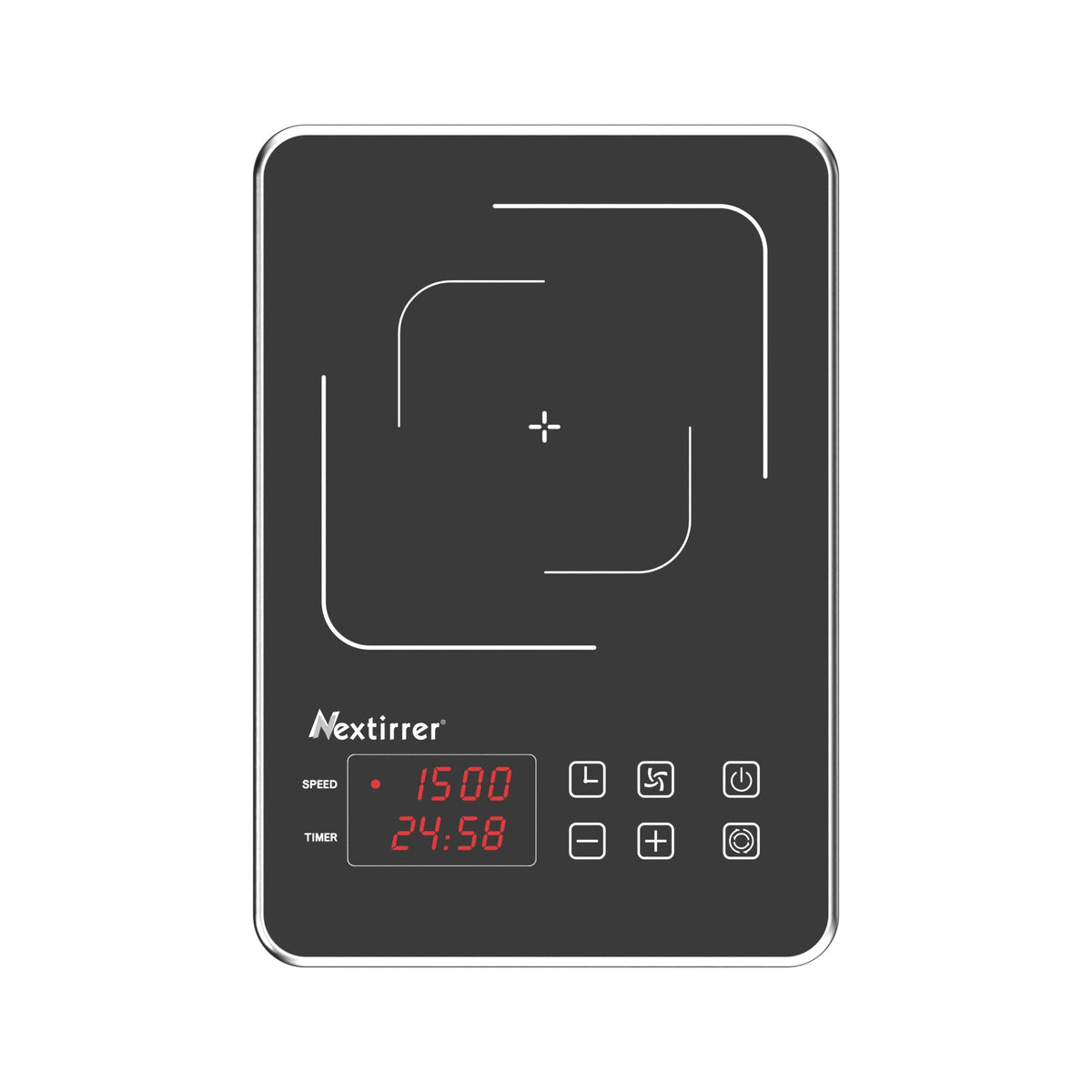

LED Display + Touch Control
Bright LED shows precise speed and remaining time. Touch screen sets values without the wear-out failure mode of mechanical knobs and membrane keys.
Wear-Free Drive
No brushes, no bearing wear, no service interval — same drive performance on year five as day one. Auto-reverse rotation every 30 seconds breaks dead zones for uniform mixing.
Tempered Glass · IP65
Φ135 mm plate is acid- and alkali-resistant, dust-tight, and rated against direct water jets. Wipes clean with any solvent — buffer spills, organic splashes, routine disinfection.
"5 liters at 50 RPM. 3 liters at 1500 RPM. The same digital setpoint, every run." — The Nextirrer® doesn't trade off capacity for control or precision for power. You get all three, on the same Φ135 mm plate, driven by the same 20 W wear-free motor.
Key Features
- LED digital display — speed and time
- Touch screen control interface
- Precise setpoint — protocol-ready values
- Wear-free drive technology
- No brushes, no bearing wear
- Speed range 50–1500 RPM
- 20 W motor rating output
- 25 W total power draw
- Φ135 mm (5") tempered glass plate
- Acid- and alkali-resistant glass surface
- Waterproof, easy-clean construction
- Max stirring volume 5 L (3 L at 1500 RPM)
- Max stir bar 55 × Φ10 mm
- Timer range up to 99h 59min
- Auto-reverse rotation every 30 seconds
- IP65 ingress protection (DIN EN 60529)
- Working temp range 5–40°C
- Relative humidity up to 80%
- Quiet operation — suitable for shared benches
- Compact 6.7 × 9.7 × 1.2 inch footprint
Ideal Applications
Buffer & Reagent Prep
5-liter batch buffers, large-volume media, and reagent dilutions where uniformity at scale is non-negotiable.
Method Development
SOP-driven workflows that require a recordable, reproducible setpoint and a long-duration unattended timer.
Pilot & Production QC
Pilot-scale dissolution, suspension stability runs, and production-support QC where 1L mini stirrers are too small.
What's in the Box
The MI0102011 ships ready for bench use — no add-on accessories required to start your first run.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MI0102011 (Nextirrer® "Godzilla") |
| Type | Digital — touch screen + LED display |
| Stirring Positions | 1 |
| Working Plate Material | Tempered glass — acid & alkali resistant |
| Set-Up Plate Dimension | Φ135 mm (5.3") |
| Display | LED — speed and time |
| Speed Range | 50–1500 RPM |
| Auto-Reverse Rotation | Yes — every 30 seconds |
| Max Stirring Quantity | 5 L (H₂O) · 3 L at 1500 RPM |
| Max Stirring Bar | 55 × Φ10 mm |
| Drive Technology | Wear-free — no brushes, no bearing wear |
| Motor Rating Output | 20 W |
| Power Draw | 25 W |
| Time Range | 0 min to 99h 59min |
| Ingress Protection | IP65 (per DIN EN 60529) |
| Working Ambient Temp | 5–40°C |
| Working Relative Humidity | ≤ 80% |
| Dimensions (W × D × H) | 170 × 246 × 30 mm (6.7 × 9.7 × 1.2 in) |
| Included Accessories | Power adapter · Stir bar · User manual |
