Surge Scientific · Model MI0102005 · PowerHT Series

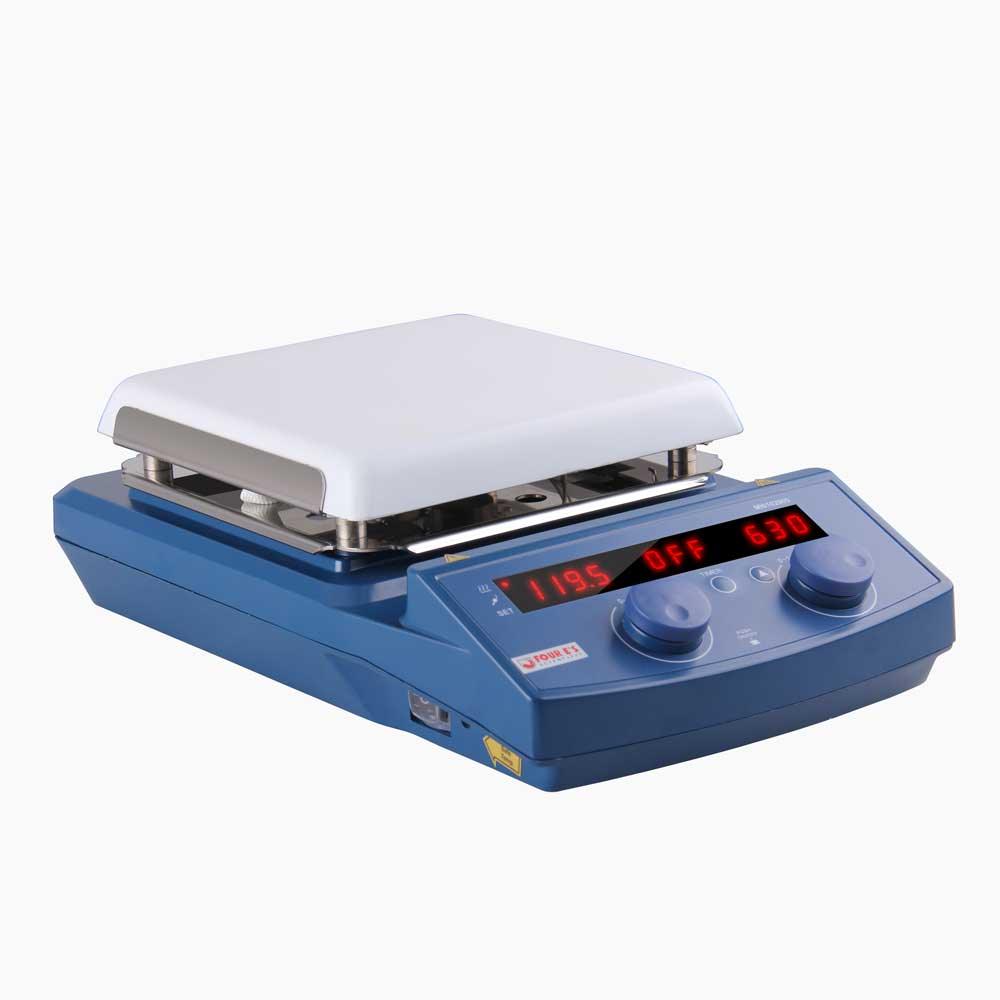

7" Magnetic Hot Plate Stirrer
PowerHT · LED Digital · External PT1000
Φ185 mm Ceramic Plate · 510°C Heating · 50–1500 RPM · External PT1000 ±1°C · Timer 0–99h 59min
Most hot plate stirrers top out at 310°C — fine for aqueous chemistry, unable to reach the viscosity-cracking, polymer-curing, high-boiling-point solvent work that actually pushes the tool hard. The PowerHT runs to 510°C across a Φ185 mm plate, with double over-temperature protection, an external PT1000 probe for closed-loop sample control, and a brushless DC motor inside a fully enclosed aluminum alloy housing built to take heat, spills, and years of continuous duty.
Why Real Heat and Real Plate Area Matter
Big beakers need big plates. Thick solvents need big heat. A 5" hot plate at 310°C is perfectly adequate for aqueous chemistry, but anything involving high-boiling solvents, polymer curing, ashing residues, or digestion chemistry runs into two walls simultaneously: not enough surface area to heat a large vessel evenly, and not enough peak temperature to drive the chemistry through.
The PowerHT's Φ185 mm stainless steel plate with ceramic coating gives you the footprint that a 5L beaker or an 8-inch round-bottom actually needs, and a 510°C ceiling with a 50–550°C safety cutoff that matches the chemistry. Stable mixing up to 20 L (H₂O) with an 80×Φ9.5 mm stir bar — the kind of scale where smaller units stop being tools and start being bottlenecks.
510°C Heating · 50–550°C Safety
Stainless steel plate with ceramic coating reaches 510°C. Safety cutoff 50–550°C plus double over-temperature protection (hardware + software).
External PT1000 Control
Optional external PT1000 probe enables closed-loop control of the liquid, not the plate. Control accuracy ±1°C with the probe clamped in the sample.
Φ185 mm Plate
Large 7-inch plate fits 5 L beakers, large flasks, and round-bottoms that overhang smaller hot plates. Stable stirring at 5 L (H₂O) using the 80 × Φ9.5 mm stir bar.
Aluminum Alloy Casing
Fully enclosed aluminum housing — high temperature resistance, excellent heat dissipation, chemical-resistant baking finish. Enclosed heating plate keeps spills out of the electronics.
"510°C on the plate. ±1°C in the liquid. Double over-temperature protection on both." — The PowerHT is the hot plate stirrer for chemistry that pushes past the aqueous comfort zone — with the safety hardware to match the temperature.
Key Features
- LED digital display — speed + temperature
- Independent digital wheels for speed + temp
- Heating range RT to 510°C
- Safety temperature cutoff 50–550°C
- Double over-temperature protection
- Hardware + software safety cutoff
- External PT1000 probe compatibility
- ±1°C control accuracy with PT1000
- Digital timer: 0–99h 59min
- Φ185 mm (7") set-up plate
- Stainless steel with ceramic coating
- Thermal-shock-resistant plate
- Fully enclosed aluminum housing
- Enclosed heating plate — anti-splash
- Hot-surface warning on LED display
- Speed range 50–1500 RPM
- Max stirring volume 20 L (H₂O)
- Stable at 5 L (H₂O) at 1500 RPM
- Max stir bar 80 × Φ9.5 mm
- Brushless DC motor — maintenance-free
- Explosion-proof motor design
- PID program control
- Working temp range 5–40°C
- Dual voltage: 100–240V, 50/60 Hz
Ideal Applications
High-Temp Chemistry
Solvent work above 300°C, polymer curing, digestion chemistry, and reactions where 5" plates at 310°C stop being the right tool.
Large-Vessel Prep
5 L media preparation, large-flask syntheses, round-bottoms, and scale-up work where Φ135 mm plates leave vessels overhanging the heat.
Formulation & Pharma
Pharmaceutical process development, ashing, sample digestion, and temperature-controlled formulation with PT1000 closed-loop accuracy.
What's in the Box
The MI0102005 ships ready for bench use — external PT1000 probe available as an option for closed-loop sample-temperature control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MI0102005 (PowerHT) |
| Type | Digital — LED display + independent digital wheels |
| Stirring Positions | 1 |
| Set-Up Plate Material | Stainless steel with ceramic coating |
| Set-Up Plate Dimension | Φ185 mm (7") |
| Housing Material | Fully enclosed aluminum alloy |
| Heating Range | RT to 510°C |
| Safety Temperature | 50–550°C (over-temperature cutoff) |
| Over-Temperature Protection | Double — hardware + software |
| Hot-Surface Warning | Yes — on LED display |
| External Temp Sensor | PT1000 compatible (optional) |
| External PT1000 Control Accuracy | ±1°C |
| Speed Range | 50–1500 RPM |
| Digital Timer | 0–99h 59min |
| Control | Independent digital wheels · PID program |
| Motor Type | Brushless DC — maintenance-free, explosion-proof |
| Max Stirring Quantity | 20 L (H₂O); 5 L stable at 1500 RPM |
| Max Stir Bar | 80 × Φ9.5 mm |
| Heating Plate | Enclosed — anti-splash, thermal-shock resistant |
| Working Ambient Temp | 5–40°C |
| Working Relative Humidity | ≤ 80% |
| Voltage / Frequency | 100–240V, 50/60 Hz |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The MI0102005 PowerHT is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, PT1000 probe ordering, quotes, and technical assistance.
