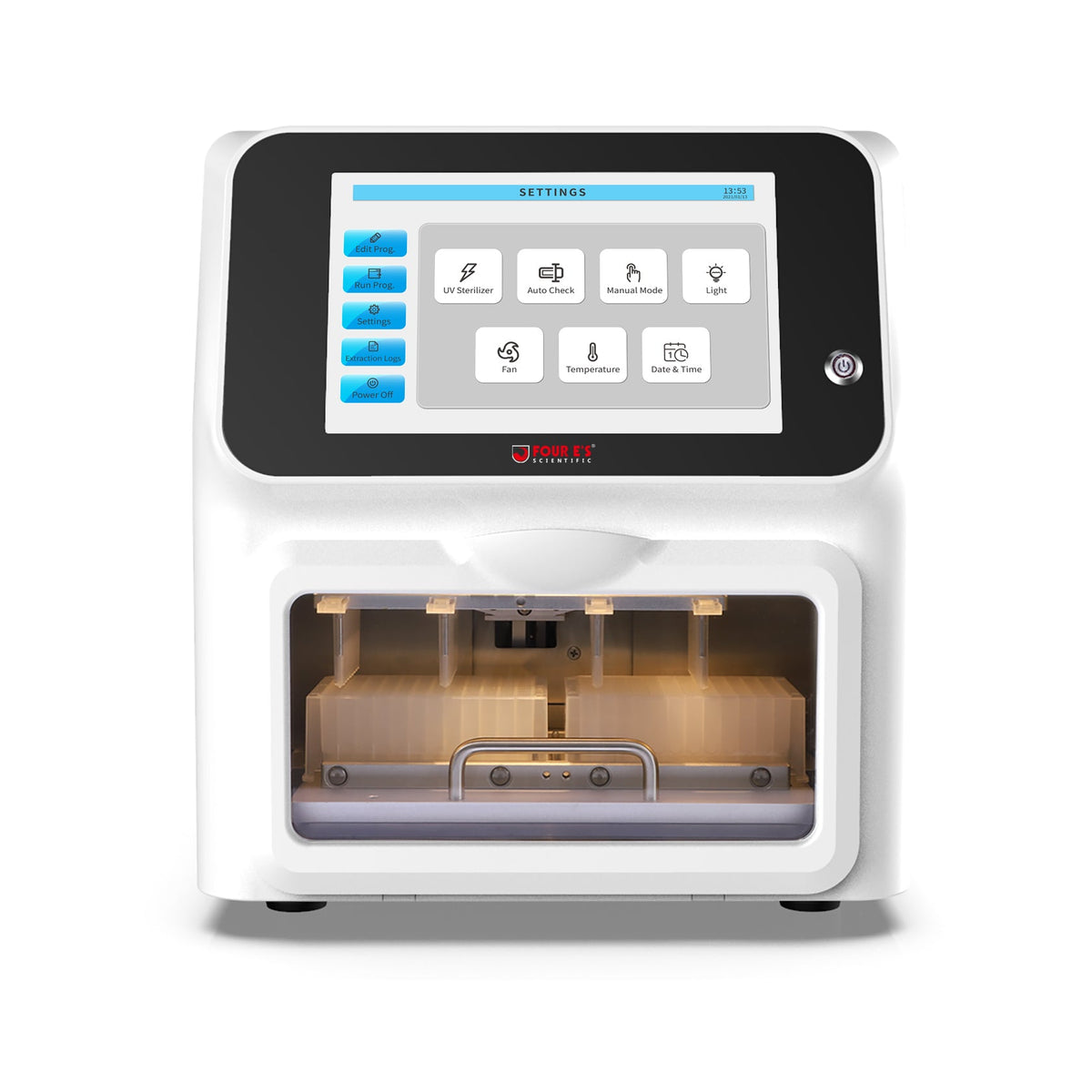

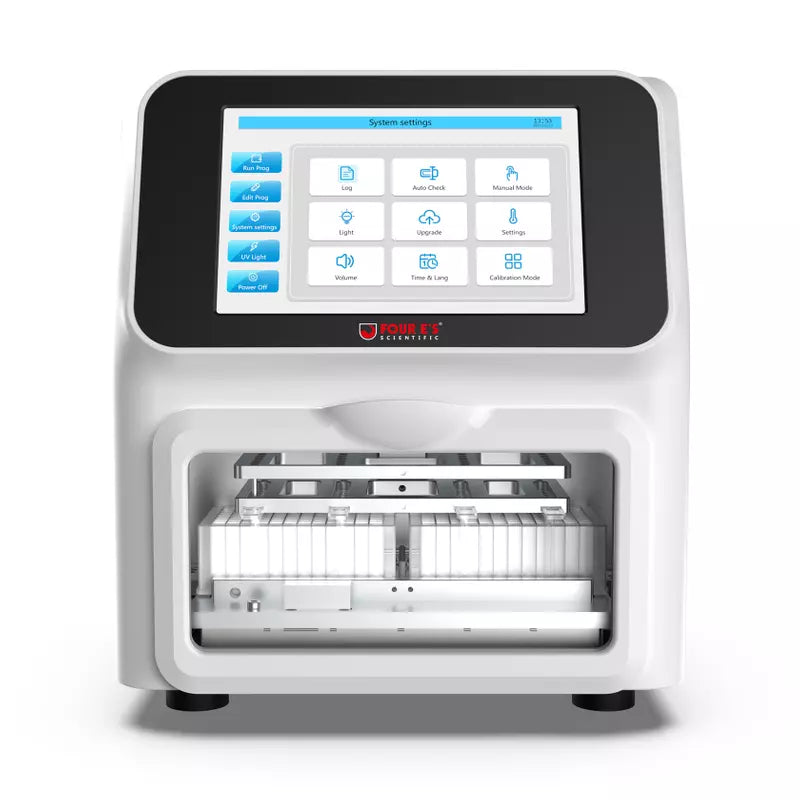

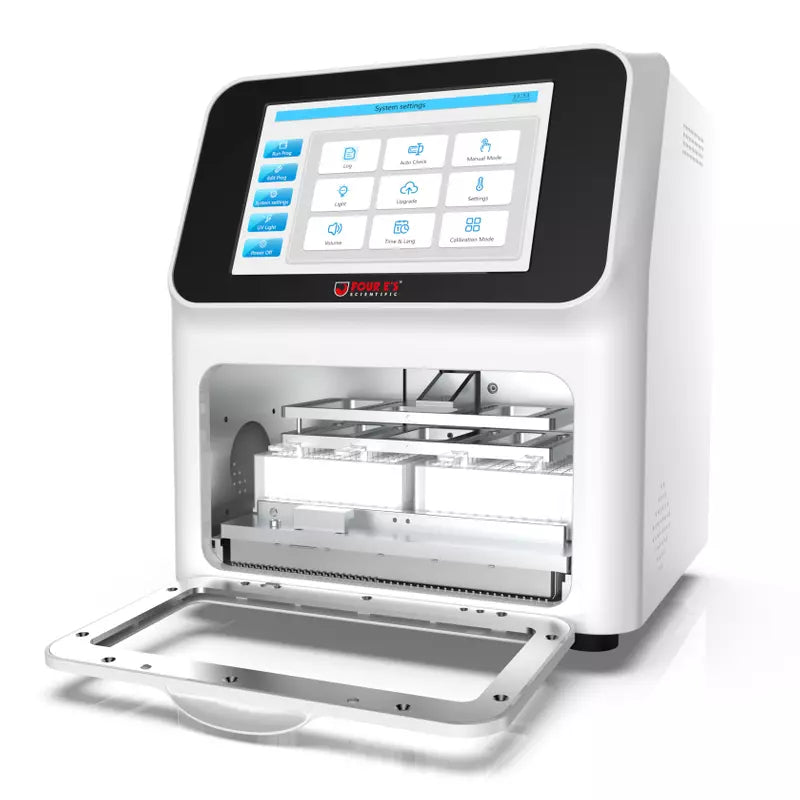

Surge Scientific · Model MultiEX 032 · 32-Throughput Nucleic Acid Extractor
Nucleic Acid Extractor
32-Throughput · Individual Heating Modules · Auto-Check
1–32 Samples / Run · Magnetic Bead Separation · Multiple Heating Zones with Independent Control · Touchscreen Interface · Auto-Verification
The MultiEX 032 doubles the MultiEX 016's throughput to 32 samples per run — and adds the feature that mid-volume diagnostic labs actually need: multiple heating modules with independent temperature control. That means lysis at one temperature and elution at another within the same run, no manual repositioning, no compromise on temperature accuracy. Auto-check function verifies correct positioning of the 96-well plate and magnetic rods before every run — eliminating the "I forgot to seat the plate" failure mode that costs labs days of repeat extractions.
Why Individual Heating Zones Beat a Single Heater
Most nucleic acid extraction protocols need two or more distinct temperatures in a single run. Lysis is typically run at 56–95°C (proteinase K activation, then heat-kill); elution is run at 65–80°C (release nucleic acid from beads); some viral and bacterial protocols add a third denaturation step at 95–125°C. A single-zone heater forces the whole plate through every temperature change — heating delays, cooling delays, and a thermal gradient across the plate that no real protocol tolerates well.
The MultiEX 032's individual heating modules let each zone hit its target temperature independently. The lysis zone hits 95°C while the elution zone holds 65°C, simultaneously. No waiting for the whole plate to ramp. No thermal gradient eating into your purification consistency. The result is faster overall run time, tighter inter-well CVs, and yields that match what you'd get from manual column purification — without the manual hours.
For decades, nucleic acid purification meant silica spin columns and centrifuges — pipette, centrifuge, transfer, repeat. It works, but it's slow, manual, and expensive in tech-time per sample. Worse, every transfer step is a chance for contamination, sample loss, or operator error. For a lab processing more than a few samples a day, the column workflow is the bottleneck.
Magnetic-bead extraction flipped the model. Magnetic beads coated with silica or specific affinity ligands bind nucleic acids in solution. A magnet pulls the beads (with bound nucleic acid) to the side of the well; the rest of the sample is washed away. Elution releases the purified nucleic acid in a small volume. No centrifuges. No transfer steps. No spin columns. Done in parallel, fully automated, with recovery rates of 95%+ and inter-well CVs typically below 3% — directly comparable to gold-standard column purification, but at a fraction of the hands-on time.
The MultiEX series automates the entire process: load the prepped 96-well plate, set the protocol on the touchscreen, walk away. The machine handles bead capture, washes, elution, and final dispense into a fresh plate ready for downstream analysis (PCR, qPCR, NGS, sequencing). UV disinfection between runs eliminates cross-contamination. Multi-temperature heating modules handle lysis and elution at the precise temperatures that maximize yield without nucleic acid degradation.
32-Sample Throughput

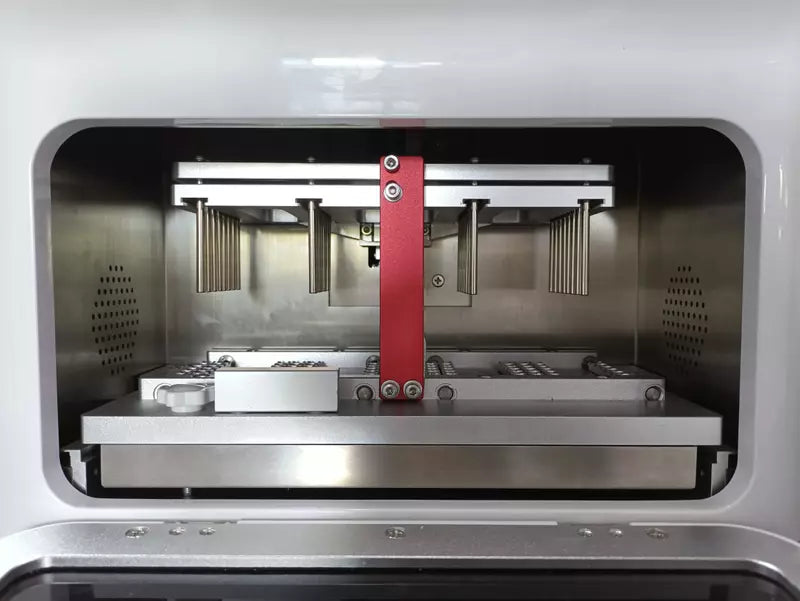

Process up to 32 samples per run in a single 96-well plate. Magnetic-bead capture, washes, elution, and dispense — fully automated, hands-off after plate loading.

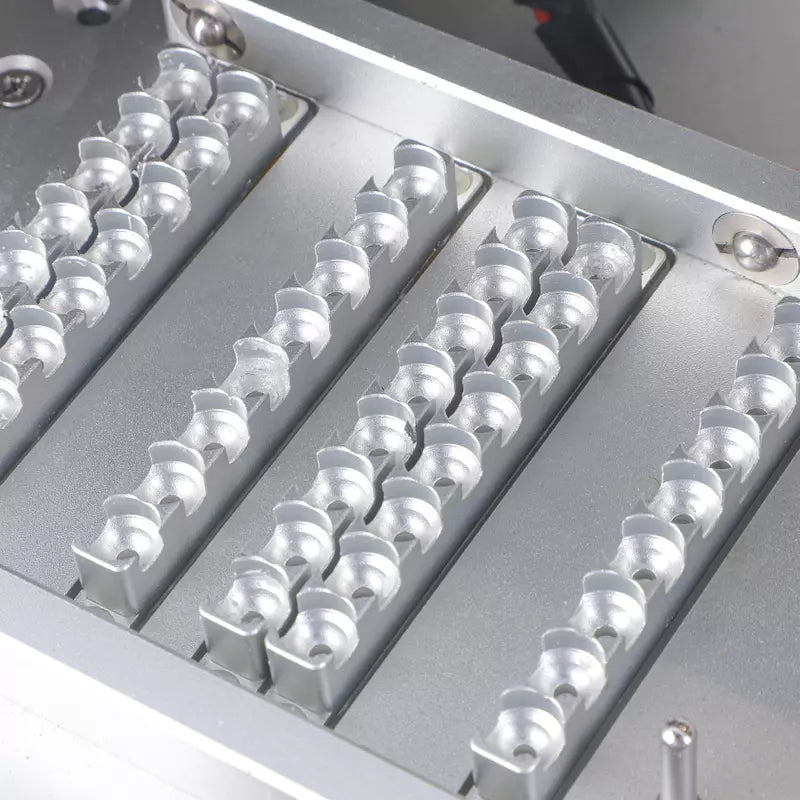

Independent Heating Modules
Multiple heating zones with individual control — lysis at one temperature and elution at another, simultaneously. Eliminates the thermal gradient and ramp-time penalty of single-zone heaters.
Auto-Check Function
Auto-verification before every run — confirms correct positioning of the 96-well plate, magnetic rods, and rod sleeves. Catches setup errors before they cost you a batch.
Universal Sample Compatibility
Magnetic-bead extraction from whole blood, viruses, tissue, plants, animals, fungi, bacteria, cultured cells, swabs, feces, blood cards — one extractor handles every sample type your lab encounters.
"32 samples. Two heating zones running simultaneously. Auto-checked before every run. The mid-throughput extractor that actually thinks about the protocol." — For diagnostic and research labs running 20–60 samples per shift, the MultiEX 032 hits the sweet spot between throughput, temperature flexibility, and bench footprint.
Key Features
- Magnetic bead-based separation technology
- 1–32 samples per run
- 96-well plate compatible
- Multiple heating modules with individual control
- Independent lysis and elution temperatures
- Auto-check function before each run
- Verifies plate positioning

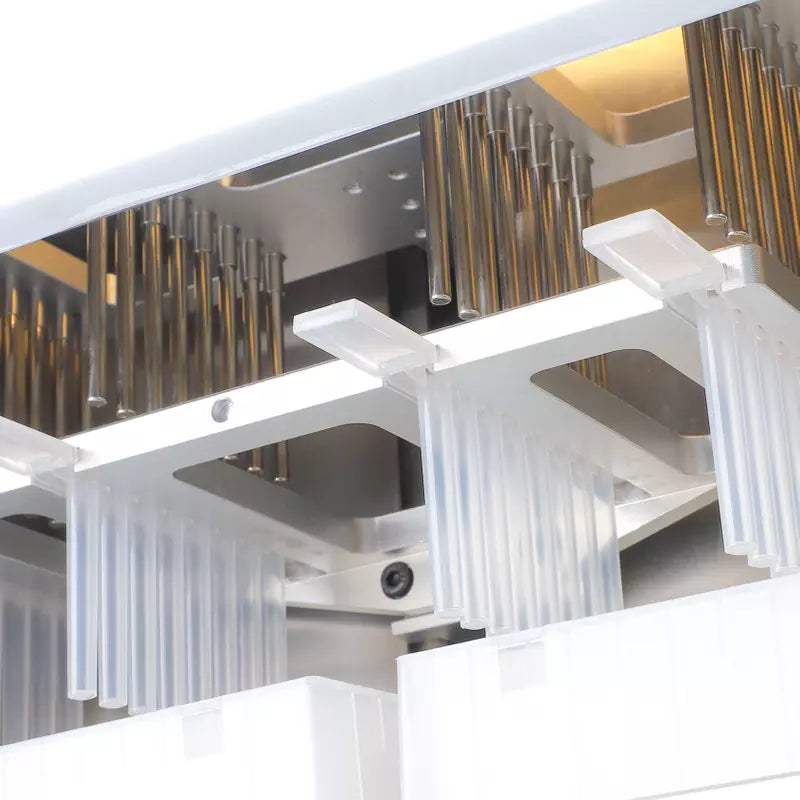

- Verifies magnetic rod positioning
- Verifies rod sleeve positioning
- Touchscreen interface
- User-friendly protocol programming
- Fully automated extraction workflow
- Closed system — minimizes contamination risk
- Universal sample compatibility
- Whole blood, virus, tissue, plant samples
- Animal, fungal, bacterial samples
- Cultured cell, swab, fecal, blood card samples
- Compatible with all magnetic-bead kits
- Open-system reagent design
- High DNA / RNA yield
- Stable inter-run reproducibility
- Reduced hands-on time
- Suitable for research labs
- Suitable for clinical molecular diagnostics
- Suitable for pharmaceutical / biotech labs
- Compact bench footprint
- Easy setup — no special infrastructure required
- Minimal maintenance
- 2-year all-inclusive warranty
Ideal Applications
Molecular Diagnostics
Clinical molecular diagnostics labs running infectious disease, oncology, or genetic-testing panels — 32-sample batches fit a typical diagnostic shift workload without manual extraction backlogs.
Research & Academic Labs
Government and academic research — molecular biology, microbiology, virology, plant science, environmental DNA — where reproducible mid-volume extraction underpins every downstream PCR/qPCR/NGS workflow.
Pharma & Biotech
Pharmaceutical and biotech R&D — drug discovery, biomarker validation, genotyping pipelines — where 32-sample throughput meets early-stage screening volumes without committing to a 96-throughput investment.
What's in the Box
The MultiEX 032 ships ready for routine use — all hardware, touchscreen interface, and documentation included. Reagent kits and consumables sold separately to match your sample type.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MultiEX 032 |
| Throughput | 1–32 samples per run |
| Plate Type | 96-well plate |
| Separation Method | Magnetic bead-based |
| Reagent System | Open — compatible with all magnetic-bead kits |
| Heating Modules | Multiple — independently controlled |
| Auto-Check | Plate, rod, rod sleeve positioning verified before each run |
| Display | Color touchscreen |
| Operation Mode | Fully automated |
| Sample Compatibility | Whole blood · virus · tissue · plant · animal · fungi · bacteria · cells · swab · feces · blood card |
| Workflow Stages | Binding · mixing · washing · elution |
| Closed System | Yes — minimizes cross-contamination |
| Intended Use | Research · clinical · diagnostic · pharmaceutical / biotech labs |
| Warranty | 2-year all-inclusive |
Detailed numerical specifications (heating range, temperature accuracy, processing volume range, dimensions) available on request — contact our product specialists for the full technical datasheet.
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The MultiEX 032 is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, reagent kit recommendations, protocol optimization, validation services, and technical assistance.
