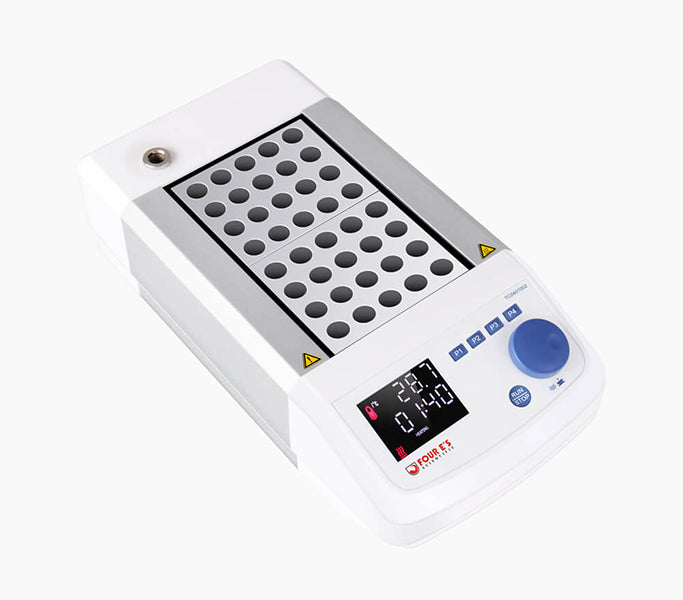

Surge Scientific · Model TC0401002 · Dual-Block Sample Heater
Dry Bath Incubator
2-Block Sample Heater · LED Digital + PT1000
150°C Max · ±0.2°C Stability · Two Independent Blocks · External PT1000 Included · 99h Timer
Most real molecular workflows need two temperatures, not one — 95°C denaturation then 65°C ligation, 37°C incubation then 95°C heat-kill, or one block running PCR tubes while the other holds conical tubes for a parallel prep. The TC0401002 runs two independent block positions simultaneously on a single footprint, with ±0.2°C uniformity, PT1000 closed-loop control, and a built-in 99-hour timer.
Why Two Blocks Beats One + Waiting
The single-block dry bath workflow looks clean on paper until you're actually running it: denature at 95°C, wait for the block to cool, re-equilibrate at 65°C, hope the samples didn't degrade while the unit was ramping down. Every transition adds 10–15 minutes of wait time. Every multi-step protocol becomes a queue.
The TC0401002 puts two block positions on one unit — run both at the same temperature for double the throughput, or run them at different setpoints for sequential protocols with zero wait between steps. Both blocks get the same ±0.2°C uniformity, the same PT1000 closed-loop accuracy, and the same 4 programmable setpoints — it's two dry baths on the power draw of one.
Two Block Positions
Run two heating blocks simultaneously — same setpoint for double throughput, different setpoints for sequential protocols with no wait-time between steps.
PT1000 Closed-Loop
External PT1000 probe included. Auto-detects when plugged in, overrides internal sensor, drives heating from the actual sample. Auto-calibration included.
±0.2°C Uniformity
Temperature stability and uniformity within ±0.2°C across both blocks. Display accuracy ±0.1°C. Each block behaves like a standalone precision heater.
4 Setpoint Memories
Store and recall four temperature setpoints with dedicated buttons — your 37°C, 65°C, 95°C, and 42°C protocols are one tap away, no menu diving required.
"Two blocks. Two setpoints. Zero wait between steps." — The TC0401002 turns sequential dry-bath protocols into parallel ones — 95°C and 65°C running at the same time, not the same block ramping up and down twice.
Key Features
- 2 independent heating block positions
- Max temperature up to 150°C
- Temperature stability and uniformity ±0.2°C
- Display accuracy ±0.1°C
- External PT1000 temperature sensor included
- Auto-detect: PT1000 overrides internal sensor
- Auto-calibration with external PT1000
- Bright LED digital display
- Celsius / Fahrenheit toggle
- 4 programmable setpoint buttons
- Quick recall for common protocols
- Digital control wheel — precise setting
- Continuous or timed operation
- Timer range 0–99h 59min
- Heating indicator icon on display
- Hot-surface warning indicator
- Error code display for diagnostics
- Built-in safety circuits
- 30+ interchangeable aluminum blocks available
- Anodized aluminum blocks (corrosion-resistant)
- Custom blocks available in bulk quantities
- Widely used in molecular biology workflows
- Compact, bench-friendly footprint
- Parallel protocol capability
- Blocks sold separately — mix-and-match 30+ options
Ideal Applications
Multi-Step Molecular
Denature / anneal, digest / heat-kill, incubation / hot-start prep — two temperatures running simultaneously so multi-step protocols collapse into one bench session.
Parallel Sample Prep
Run PCR tubes on one block and conical tubes on the other — two sample types, two block geometries, one unit, same PT1000 precision.
Diagnostic & QC
Throughput-critical diagnostic labs, blood-bank work, LAL testing, and clinical QC where a single-block queue would slow the whole workflow.
What's in the Box
The TC0401002 ships with the external PT1000 probe. Heating blocks are sold separately — browse 30+ standard blocks or request custom machining. Mix-and-match two different block geometries on the same unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | TC0401002 |
| Block Positions | 2 — independent |
| Temperature Range | RT +5°C to 150°C |
| Max Temperature | Up to 150°C |
| Temp. Stability | ±0.2°C |
| Temp. Uniformity | ±0.2°C |
| Display Accuracy | ±0.1°C |
| Internal Sensor | Built-in — auto-disconnects when PT1000 is plugged in |
| External Sensor | PT1000 — included, auto-calibration |
| Display | LED — set/actual temperature + time |
| Control | Digital wheel + 4 programmable setpoint buttons |
| Temperature Units | Celsius / Fahrenheit (toggle) |
| Operation | Continuous or timed |
| Timer Range | 0–99h 59min |
| Safety Features | Hot-surface warning · Error code display · Built-in safety circuits |
| Block Material | Anodized aluminum (corrosion-resistant) |
| Blocks Available | 30+ standard blocks · Custom blocks on request |
| Voltage / Frequency | 100–240V, 50/60 Hz |
| Heating Blocks Included | No — sold separately |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The TC0401002 is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, heating block selection, custom block quotes, and technical assistance.
