Surge Scientific · Model 960406 · Real-Time Fluorescent Quantitative PCR System · 96 Wells
Real-Time Fluorescent qPCR System
96-Well · 6 Fluorescence Channels · 0.1°C Block Resolution · 10.1-inch Touchscreen
96-Well Format · 6 Channels (Cross-Talk Free) · 30–100°C Gradient with 40°C Adjacent Block Difference · Auto Sample Tray In/Out · Two Temperature Control Modes · PC + Built-in Software
The 960406 is the full-plate research-grade qPCR system for high-throughput molecular diagnostics, NGS quantification, and any workflow that needs 96 samples and 6-target multiplexing in a single run. High-precision temperature control with 0.1°C block resolution, gradient temperature range 30–100°C with up to 40°C difference between adjacent blocks for assay optimization, and 6 fluorescence channels with no crosstalk. Automatic sample tray motion in/out enables integration with workstations and plate handlers for unmanned overnight operation. The 10.1-inch large touchscreen handles flexible programming, and dual built-in + PC software lets you analyze qPCR data however your workflow demands.
Why 6-Channel × 96-Well qPCR Defines Modern Diagnostics
Modern molecular diagnostic panels — respiratory pathogens, sexually transmitted infections, sepsis screens, oncology biomarkers — are multiplex assays that detect multiple targets per well. A 4-channel qPCR can run a 4-plex; a 6-channel system can run a 6-plex, which means more pathogens detected per well, fewer wells per panel, more panels per run. For high-throughput diagnostic labs, that's the difference between processing 96 samples × 4 targets (384 results) and 96 samples × 6 targets (576 results in the same run).
But channel count alone doesn't matter if the channels suffer crosstalk. Cheap qPCR systems pack channels too closely, and excitation light from one channel bleeds into the detector of another — producing false-positive signals that destroy multiplex specificity. The 960406's 6 fluorescence channels are crosstalk-free, with 40°C maximum gradient between adjacent blocks (compared to typical 5–10°C) for unprecedented assay optimization range. Combined with the 0.1°C block temperature resolution and two temperature control modes (block or tube), the 960406 delivers the optical and thermal precision that high-stakes diagnostics demand.
6 Channels · No Crosstalk
6 fluorescence channels with zero crosstalk — supports 6-plex multiplex assays for maximum target density per well. 96 samples × 6 targets = 576 data points per run.
0.1°C Block Resolution
0.1°C block temperature resolution for reliable, consistent qPCR data. Gradient range 30–100°C with 40°C adjacent block difference for unmatched assay optimization range.

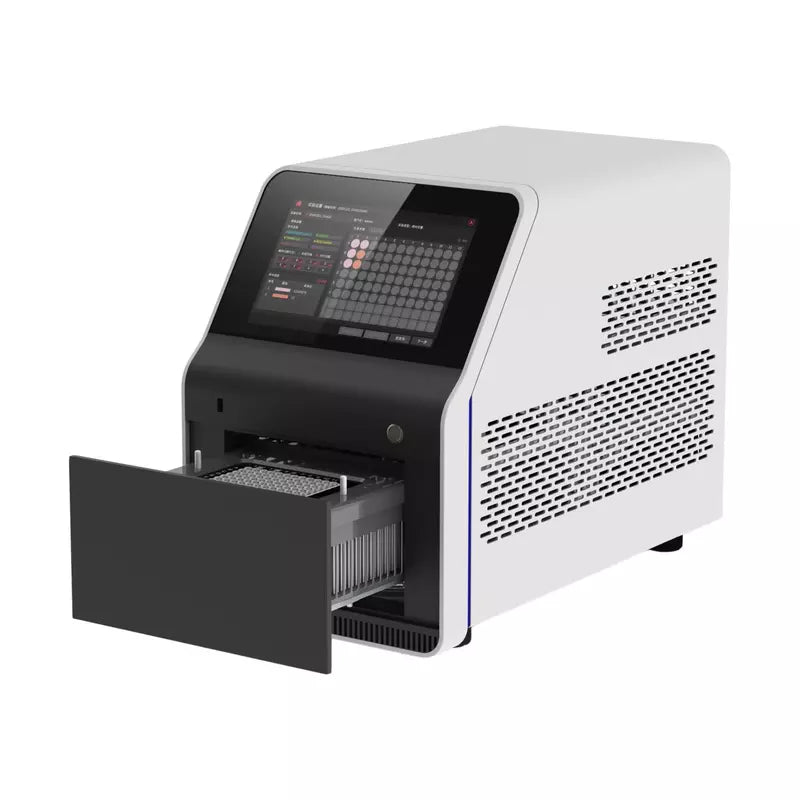

Auto Sample Tray
Sample tray automatically moves in/out — enables integration with automated workstations and plate handlers for unmanned overnight detection in high-throughput labs.

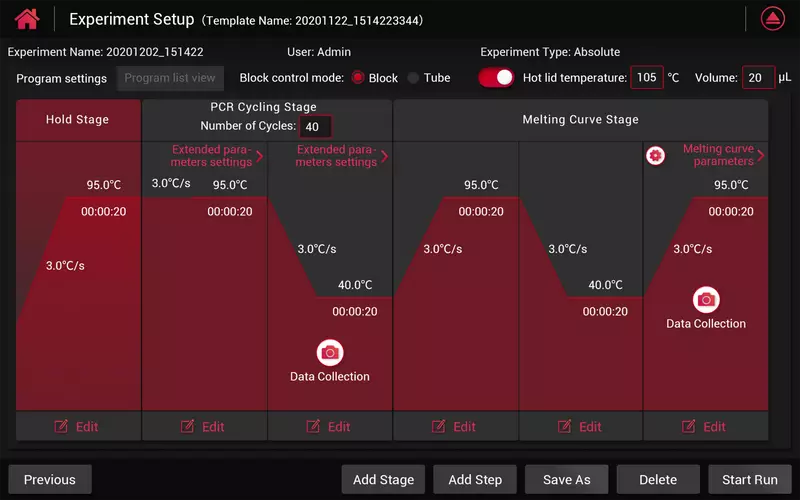

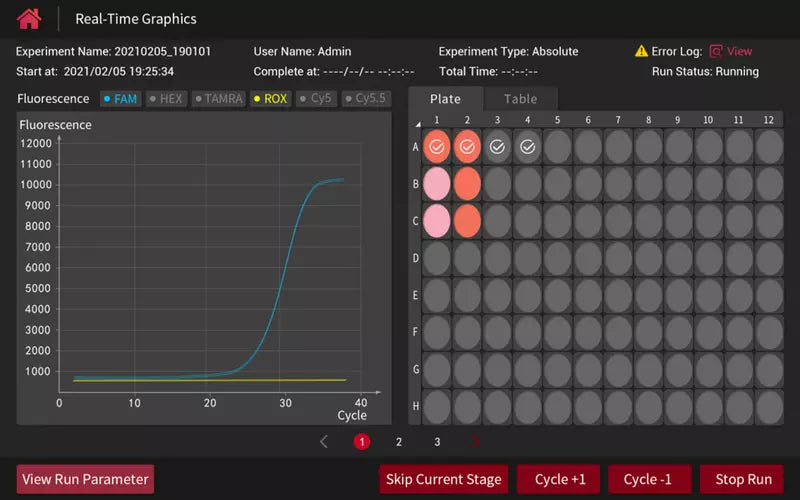

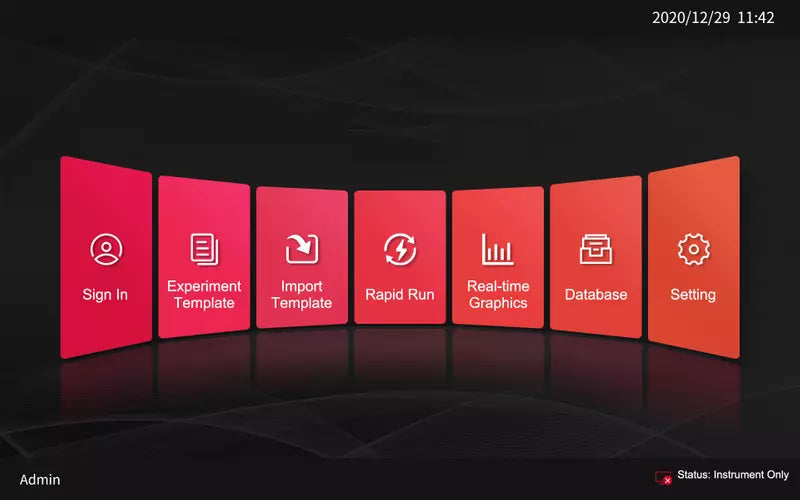

10.1-inch Touchscreen + Dual SW
10.1-inch large touchscreen for flexible programming. Built-in software for stand-alone + PC software for in-depth analysis. Two temperature control modes — block or tube.
"Six channels of clean fluorescence. 96 wells of high-precision thermal control. 576 data points per run — the throughput modern diagnostics actually require."
Key Features
- 96-well plate format
- 6 fluorescence detection channels
- No channel crosstalk
- Multiplex up to 6 targets per well
- High-precision temperature control
- 0.1°C block temperature resolution
- Gradient temperature range 30–100°C
- Up to 40°C difference between adjacent blocks
- Two temperature control modes (block / tube)
- Sample tray auto-moves in/out
- Workstation / plate handler integration
- Unmanned operation capable
- 10.1-inch large color touchscreen
- Built-in flexible programming software
- PC software for advanced analysis
- Stand-alone or PC-controlled operation
- Suitable for absolute & relative quantification
- Suitable for melting curve analysis
- Suitable for SNP genotyping
- Compatible with all standard qPCR reagent kits
- High-throughput diagnostics ready
- Research-grade data quality
- Suitable for clinical / research / industrial labs
- 2-year all-inclusive warranty
Ideal Applications
High-Throughput Diagnostics
Clinical molecular diagnostics — multiplex respiratory panels, STI screens, sepsis panels, oncology biomarker panels — where 6-plex × 96 wells defines the standard.
NGS Library QC
NGS library quantification, normalization, and pre-sequencing QC — where accurate qPCR-based library quantification beats fluorometric estimates for amplifiable molecule count.
Automated Diagnostic Pipelines
Automated pipeline integration with liquid handlers and plate movers — sample tray in/out enables unattended overnight runs for max throughput.
What's in the Box
The 960406 ships ready for high-throughput qPCR — touchscreen, dual software, automated sample tray, all integrated.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | 960406 |
| Plate Format | 96-well |
| Fluorescence Channels | 6 — no crosstalk |
| Multiplex Capability | Up to 6 targets per well |
| Block Temperature Resolution | 0.1°C |
| Gradient Temperature Range | 30–100°C |
| Max Adjacent Block Difference | 40°C |
| Temperature Control Modes | Block or Tube (selectable) |
| Sample Tray | Automatic motion (in/out) |
| Automation | Workstation/plate-handler integration |
| Display | 10.1-inch color touchscreen |
| Software | Built-in + Windows PC |
| Analysis | Absolute · Relative · Melting curve · SNP / Genotyping |
| Reagent Compatibility | All standard qPCR kits |
| Warranty | 2-year all-inclusive |
Detailed numerical specifications (heating/cooling rates, dimensions, weight, power consumption) available on request — contact our product specialists for the full technical datasheet.
