Surge Scientific · Tianlong Gentier 96R · IVDR CE Certified

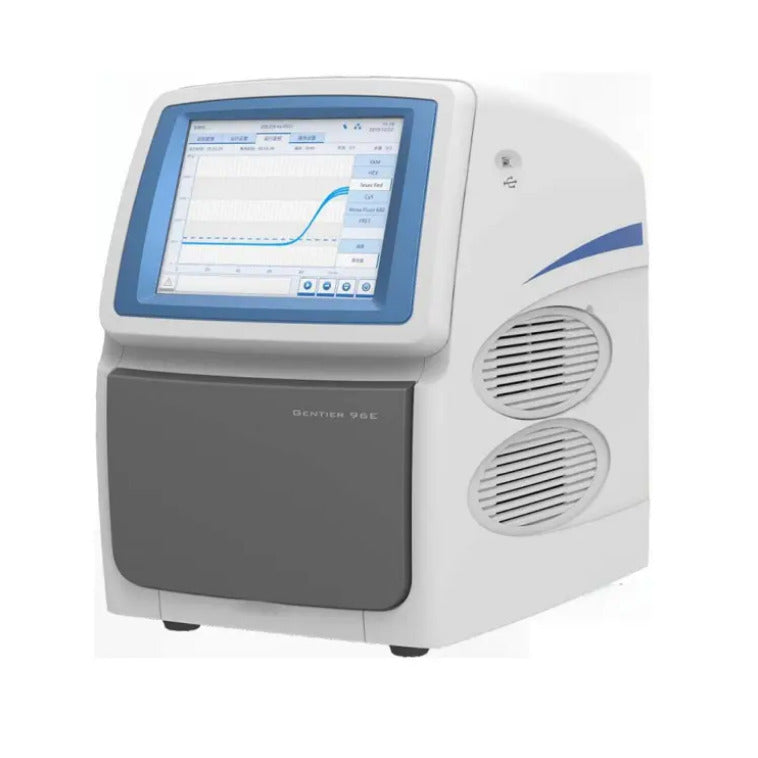

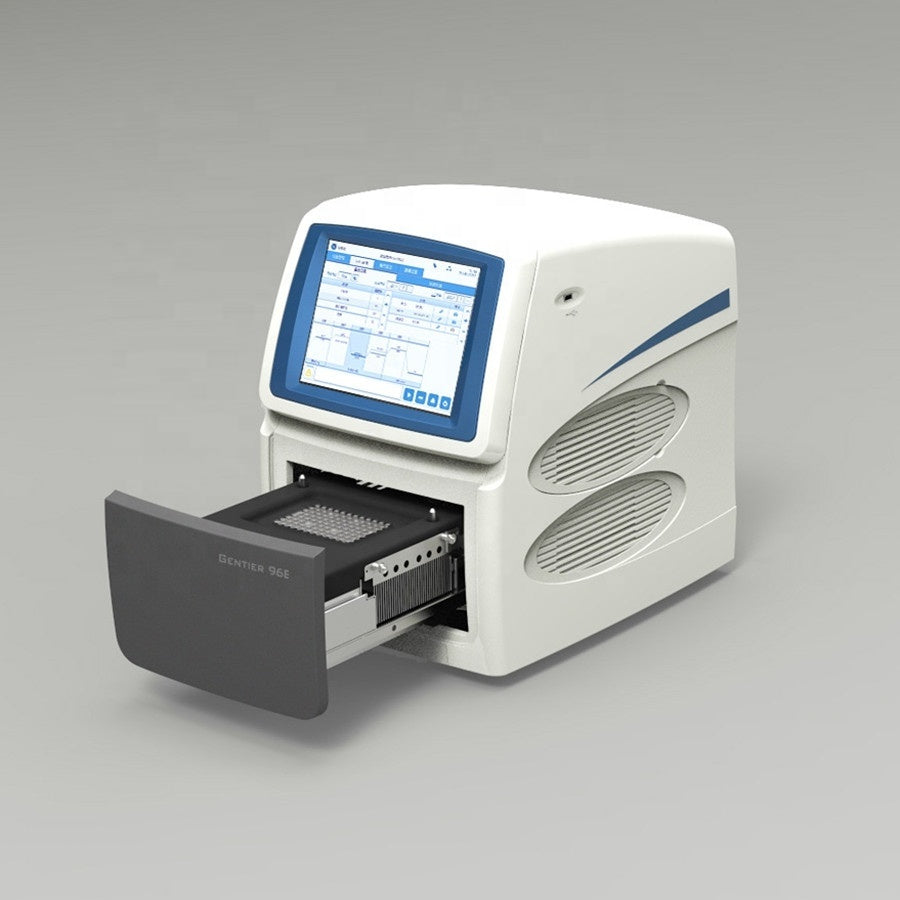

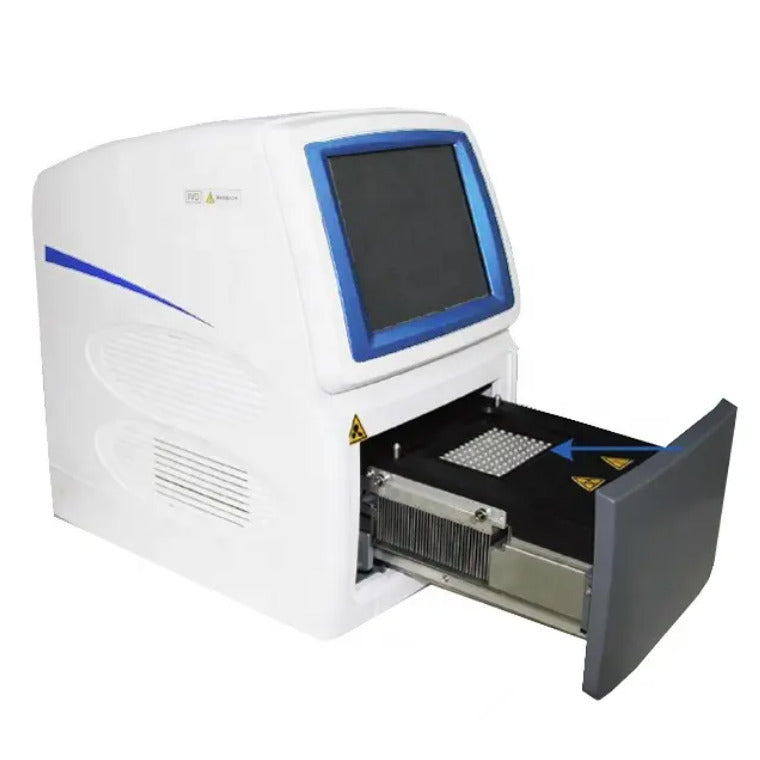

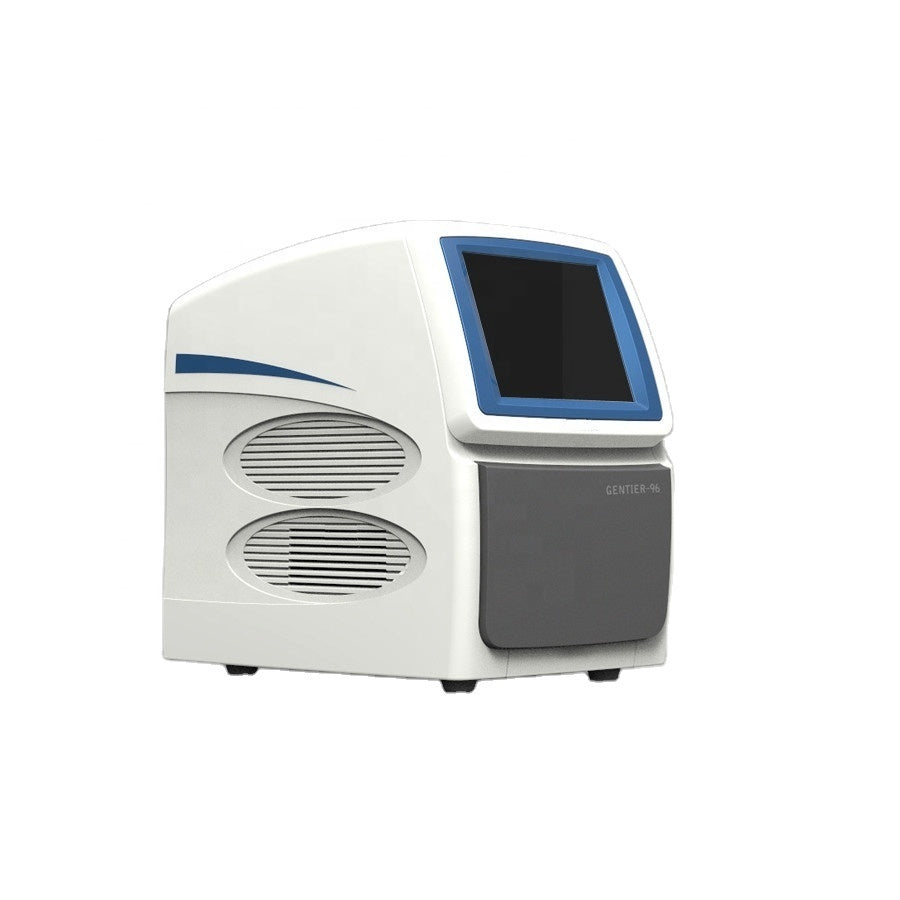

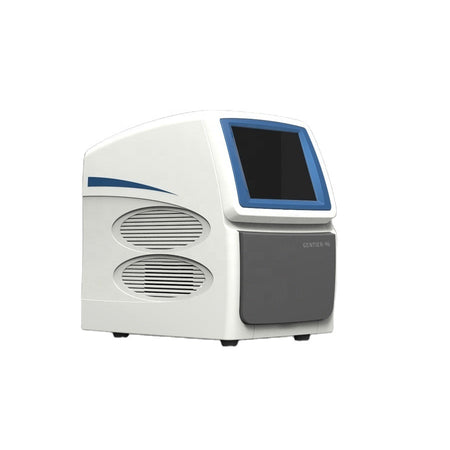

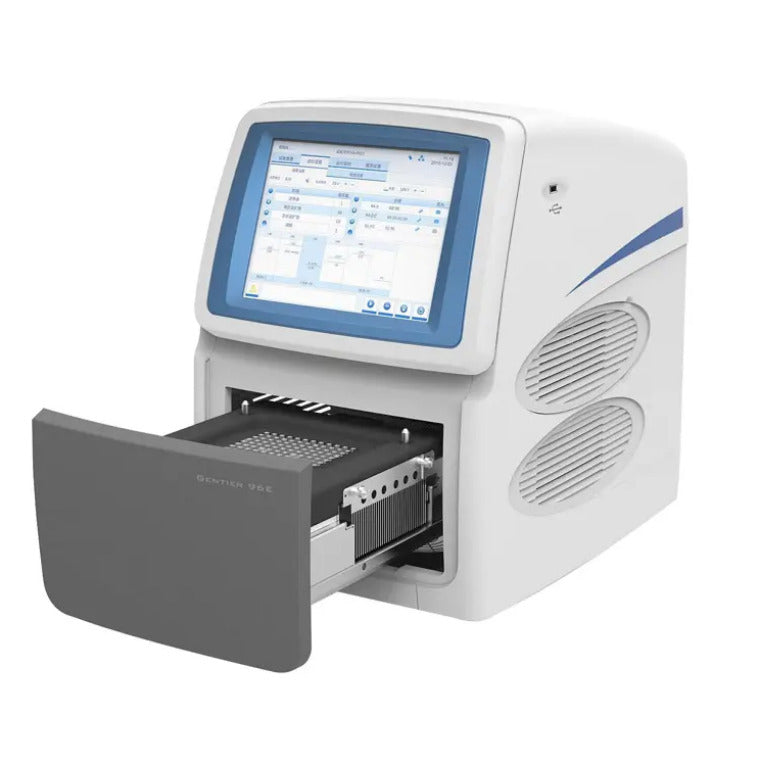

Gentier 96R Real-Time PCR System
96 Wells · 4 Fluorescence Channels · 7-Second Full-Plate Scan · ±0.1°C Uniformity · Standalone Touchscreen
The majority of clinical and research qPCR assays run on four dye channels — FAM, HEX/VIC, ROX, and Cy5. The Gentier 96R is built precisely around that reality: four optimized fluorescence channels covering every major probe chemistry in current diagnostic and research use, paired with the same Peltier thermal block and 7-second full-plate scanning engine that drives the 96E — at a configuration matched to how most labs actually run their panels.
7s
Full 96-Well Scan
4
Fluorescence Channels
>6.1°C/s
Max Heating Rate
±0.1°C
Block Uniformity
Drop-in compatible with Bio-Rad CFX96 assay panels. The Gentier 96R's 4-channel optical configuration — FAM, HEX/VIC, ROX, Texas Red, Cy5 — mirrors the CFX96 channel layout. Assays validated on the CFX96 transfer to the 96R without re-optimization, making it the lowest-friction upgrade path for labs standardizing on a cost-efficient high-throughput platform.
Why Four Channels Cover the Full Diagnostic Spectrum
The diagnostic PCR market runs predominantly on four dye channels. FAM anchors the primary target in virtually every clinical assay — from SARS-CoV-2 to HPV to MRSA. The second channel (HEX/VIC) carries the internal control in singleplex formats or the second target in duplex panels. ROX serves as the passive reference in most thermocycler platforms, and Cy5 handles the fourth target in multiplex infectious disease panels or the second probe in SNP genotyping. Labs that pay for a sixth channel and use it for two runs per year are over-instrumenting for a workflow that doesn't require it.
The Gentier 96R delivers the same Peltier thermal block, the same 7-second LED/photodiode scan architecture, and the same ±0.1°C uniformity as the 96E — optimized to four channels that cover 95% of published clinical qPCR assay formats. The result is full-platform performance tuned precisely to the workload of clinical diagnostics, infectious disease testing, and standard molecular research panels.
7-Second Full-Plate Scan, No Edge Effects
The top-scanning LED/photodiode optical system scans all 96 wells across all 4 channels in 7 seconds — simultaneous well-by-well detection eliminates the position-dependent signal variation that plagues sequential scanning systems. Every well in every row sees the same optical geometry, at the same moment in the thermal cycle.
Peltier Block — Precision at Scale
A maximum heating rate of >6.1°C/s and cooling rate of >5.0°C/s keep thermal cycling tight across all 96 wells simultaneously. ±0.1°C block uniformity and ≤0.1°C temperature accuracy translate directly to Ct CV ≤0.5% — the repeatability benchmark required for validated clinical assay performance.
Standalone Operation Without PC Dependency
A 10.4-inch full-color touchscreen runs protocols, stores up to 1,000 results, and manages all instrument functions independently. Power-failure protection resumes interrupted experiments automatically — no PC reboot, no software restart, no lost run — making the 96R reliable in environments where IT infrastructure is inconsistent.
Complete Analysis Suite, On-Board
Absolute quantification, relative quantification, SNP genotyping, and melting curve analysis are all available directly on the instrument — no external software license required for routine workflows. Customizable report templates output publication-ready or regulatory-submission-ready data in a single export step.
|r| ≥ 0.999 linear correlation · Ct CV ≤ 0.5% · 10¹ to 10¹⁰ copy dynamic range. The Gentier 96R's validated performance parameters satisfy the quantification accuracy and repeatability requirements of IVDR CE certification — the same regulatory standard applied to in vitro diagnostic instruments in the European market.
Key Features
- 96-well throughput — 1 to 96 samples per run
- Complete 96-well fluorescence scan in 7 seconds
- 4 optimized fluorescence detection channels
- High-brightness, maintenance-free LED light source
- Photodiode (PD) detector — top-scanning architecture
- Simultaneous well-by-well detection — zero edge effects
- Peltier heating: >6.1°C/s · Cooling: >5.0°C/s
- Block uniformity: ±0.1°C across all 96 wells
- Temperature accuracy: ≤0.1°C
- Gradient PCR: 12 columns, 1°C–40°C range
- Touch Down PCR and Long PCR protocol support
- 10.4-inch full-color touchscreen — complete standalone operation
- PC software control via direct USB connection
- Power-failure auto-recovery — no data loss, no intervention
- 1,000 experimental results stored on-board
- USB data upload and download
- Absolute and relative quantification
- SNP genotyping analysis
- Melting curve / dissociation curve analysis
- Customizable report templates — export-ready output
- Compatible: 0.2mL 96-well plates, 8-tube strips, single tubes
- Sample dynamic range: 10¹ to 10¹⁰ copies
- Ct CV ≤ 0.5% · Linear correlation |r| ≥ 0.999
- IVDR CE certified · EU RoHS compliant · NMPA registered
4-Channel Fluorescence Configuration
The Gentier 96R's four channels cover every probe chemistry used in standard clinical diagnostics, infectious disease multiplex panels, SNP genotyping, and quantitative gene expression analysis — including both hydrolysis probe and intercalating dye formats.
CH 1 · 465nm / 510nm
FAM / SYBR Green I
FAM · SYBR Green I · SYTO 9 · Eva Green · LC Green
CH 2 · 527nm / 563nm
HEX / VIC
HEX · VIC · TET · JOE
CH 3 · 580nm / 616nm
ROX / Texas Red
ROX · Texas Red
CH 4 · 632nm / 664nm
Cy5
Cy5
Ideal Applications
Clinical Diagnostics
Infectious pathogen detection, blood screening, viral load quantification, STI panels, and oncology marker testing in hospital, clinical reference, and public health laboratories where validated 4-dye assay formats are the standard.
Molecular Research
Absolute and relative gene expression, SNP genotyping, melting curve analysis, and high-throughput quantitative PCR screening in genomics, immunology, forensic science, and pharmacogenomics research workflows.
Food, Vet & Environmental
Pathogen detection in food and dairy, animal disease surveillance, environmental health monitoring, and agricultural safety testing at CDC, inspection bureaus, and veterinary diagnostic centers running standardized 4-channel assay panels.
Connectivity & Compatibility
The Gentier 96R integrates into existing laboratory infrastructure without workflow disruption — running standalone via touchscreen or connected to PC software, with consumable compatibility spanning all standard 96-well formats.
Technical Specifications
| Parameter | Specification |
|---|---|
| Sample & Throughput | |
| Model | Gentier 96R |
| Sample Throughput | 1–96 wells per run |
| Suitable Consumables | 0.2mL 96-well plates · 8-tube strips · single tubes (clear, frosted, white) |
| Sample Dynamic Range | 10¹ to 10¹⁰ copies |
| Linearity (|r|) | ≥ 0.999 |
| Repeatability (Ct CV) | ≤ 0.5% |
| Optical System | |
| Fluorescence Channels | 4 |
| Fluorescence Scanning Time | 7 seconds (all 96 wells, all channels) |
| Detection Method | Simultaneous well-by-well scanning — no edge effects |
| Light Source | High-brightness, long-life, maintenance-free LED · top excitation |
| Detector | Photodiodes (PDs) · top scanning |
| Fluorescence Dynamic Range | Adjustable |
| Excitation Wavelengths | CH1: 465nm · CH2: 527nm · CH3: 580nm · CH4: 632nm |
| Detection Wavelengths | CH1: 510nm · CH2: 563nm · CH3: 616nm · CH4: 664nm |
| Dye Compatibility | CH1: FAM, SYBR Green I, SYTO 9, Eva Green, LC Green · CH2: HEX, VIC, TET, JOE · CH3: ROX, Texas Red · CH4: Cy5 |
| Thermal Block | |
| Heating Method | Peltier |
| Heating Rate | > 6.1°C/s (maximum) |
| Cooling Rate | > 5.0°C/s (maximum) |
| Temperature Uniformity | ±0.1°C |
| Temperature Accuracy | ≤ 0.1°C |
| Gradient Range | 1°C – 40°C |
| Gradient Block | 12 columns |
| Special PCR Protocols | Gradient PCR · Touch Down PCR · Long PCR |
| Software & Control | |
| Control Mode 1 | 10.4-inch full-color touch screen (standalone) |
| Control Mode 2 | PC direct control via software |
| PC Operating System | Windows 7 / 10 / 11 |
| Data Storage | Up to 1,000 experimental results stored on-board |
| Data Transfer | USB disk upload/download |
| Power Failure Protection | Automatic experiment recovery on power restore — no PC required |
| Reporting | Customizable experiment report templates |
| Analysis Functions | Absolute quantification · Relative quantification · SNP analysis · Melting curve analysis |
| Physical & Electrical | |
| Dimensions (W×L×H) | 555 × 475 × 484 mm |
| Weight (Net) | 30 kg |
| Power Supply | AC 100–240V, 50–60Hz · 900 VA |
| Certifications | IVDR CE · NMPA · EU RoHS |
