Surge Scientific · Model AQVT-50 · 12-Channel · Adjustable Spacing 4.5–9 mm · Volume 2–50 uL

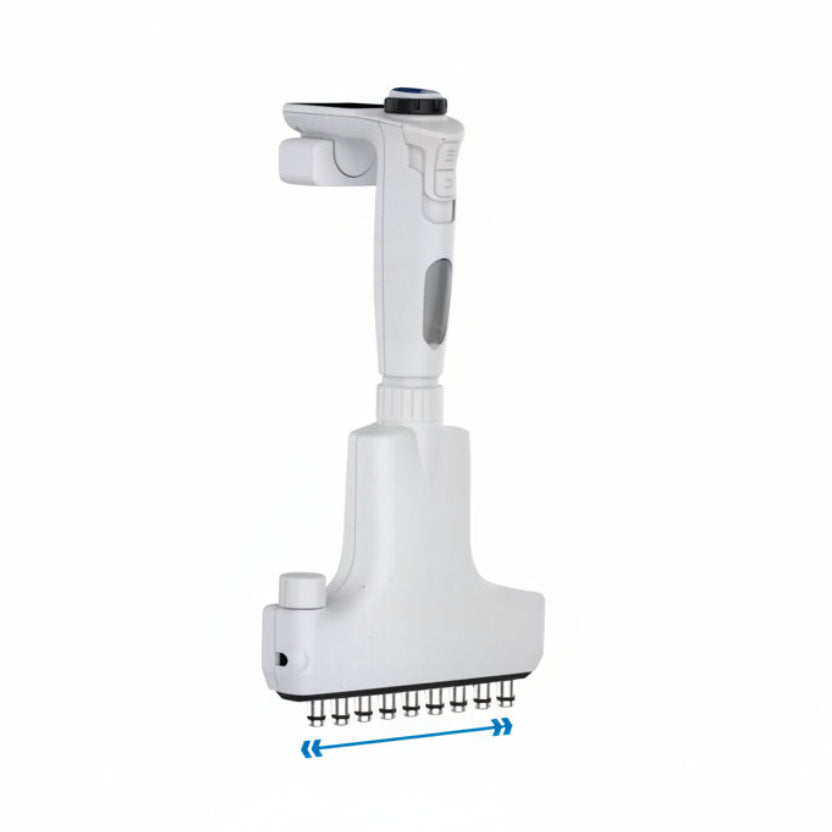

AQUA AQVT-50
Electronic Adjustable Spacing Pipettor
Mid-Range Plate Workflow · 0.4 uL CV at 50 uL · Adjustable Spacing · 12-Channel · 360° Rotatable Head · 12 Programmable Modes
The 2–50 uL range covers the busiest plate-based workflows in modern labs — PCR setup, ELISA standards, antibody dilutions. The AQVT Series delivers it across 12 channels with electronic spacing from 4.5 mm – 9 mm, replacing what was previously a multi-pipette workflow with one instrument.
Why The AQVT-50?
PCR plate setup, restriction digest distribution, and ELISA standard curves all live in the 2–50 uL window — and all suffer when samples need to move between plate formats. Manual multi-channel pipettes hit the volume but lose throughput on every reformat.
The AQVT Series motorizes both the volume and the spacing. Linear stepping piston control delivers 1 uL accuracy and 0.4 uL CV at the 50 uL nominal across all 12 channels, with one-button spacing change covering 384-well (4.5 mm) and 96-well (9 mm) plates.
4.5–9 mm ELECTRONIC SPACING
One-button electronic spacing control covers 384 / 96-well plates — eliminating the row-by-row manual transfers between plate formats that destroy throughput and reproducibility.
50 uL NOMINAL ACCURACY
At full volume, the AQVT-50 delivers 2% accuracy and 0.8% CV per the catalog spec, verified against DIN EN ISO 8655-2 at an ISO 17025 accredited lab.
360° ROTATABLE HEAD
The head is fully tubeless and rotates a full 360°, keeping the display visible regardless of grip angle. Faster parameter checks and improved ergonomics on long protocols.
12 MODES + 6 PROGRAMS
Forward, reverse, mix, dilute, repetitive dispense, sequential, multi-stage aspirate, stepper. Six programs save to memory — recall complex protocols with one button.
"12 channels, 4.5–9 mm spacing, 2% accuracy at 50 uL." — The AQVT-50 replaces a manual workflow between 384 / 96-well plates with one motorized instrument and a single calibration certificate — the kind of consistency that previously required automated liquid handlers.
Key Features
- 12-Channel adjustable-spacing configuration
- Electronic one-button tip-spacing control
- Spacing range: 4.5 mm – 9 mm
- Plate compatibility: 384 / 96-well plates
- Volume range: 2 – 50 uL
- Increment resolution: 0.5 uL
- 2% accuracy at 50 uL nominal
- 0.8% CV at 50 uL nominal
- Color-coded volume identification — Forest Green band
- Tubeless, fully rotatable 360° head
- External detachable 4.2V Li-ion rechargeable battery
- 800 mAh capacity — 8 hours of operation
- ~2-hour full recharge time
- USB Type-A and Type-C charger compatibility
- Linear stepping electronic piston control
- 304 stainless steel tip cones on every channel
- 12 unique modes of operation
- Stores 6 user-defined programs in memory
- 3-speed pipetting selection (Low / Medium / High)
- Repetitive / stepper dispense mode
- 1-inch tempered LCD glass display
- Volume adjustment wheel for one-handed operation
- Soft-key programming interface
- Mini USB interface for diagnostics
- Manual tip ejection
- Universal tip cones — accept standard tip brands
- Lower section autoclavable at 121°C, 1 bar, 20 minutes
- ISO 17025 calibration certificate included
- Conforms to DIN EN ISO 8655-2 standards
Ideal Applications
PCR & GENOMICS
PCR plate setup, restriction digests, and ligation reactions across multiple plate formats.
ELISA STANDARDS
Standard curve preparation, antibody titrations, and sample addition where plate-format flexibility matters.
FORMAT-SWITCHING WORKFLOWS
Sample reformatting between 96-well, 384-well, and intermediate plate types in molecular biology pipelines.
Other Models in the AQVT Series
Twelve channels covering an entire row of a 96-well plate or 384-well alternating row in one stroke — the highest-throughput format in the AQUA adjustable-spacing range. The AQVT-50 is one of 3 volume tier(s) offered in this series — same handle, same firmware, same spacing range.
Other AQUA Adjustable Spacing series with different channel counts and spacing ranges:
AQVT-50 Accuracy & Precision
| Test Volume | Accuracy ±% | Accuracy ±uL | Precision CV ±% | Precision CV ±uL |
|---|---|---|---|---|
| 50 uL | 2 | 1 | 0.8 | 0.4 |
| 25 uL | 4 | 1 | 1.6 | 0.4 |
| 5 uL | 20 | 1 | 8 | 0.4 |
Error limits in accordance with DIN EN ISO 8655-2, based on the 50 uL nominal capacity. Per-channel calibration verified at an ISO 17025 accredited laboratory and supplied with each unit.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | AQVT-50 |
| Series | AQVT Series |
| Configuration | 12-Channel adjustable-spacing electronic pipettor |
| Number of Channels | 12 |
| Tip Spacing Range | 4.5 mm – 9 mm |
| Plate Compatibility | 384-well (4.5 mm) and 96-well (9 mm) plates |
| Spacing Adjustment | Electronic one-button control |
| Head Rotation | 360°, fully tubeless |
| Volume Range | 2 – 50 uL |
| Increment | 0.5 uL |
| Color Code | Forest Green |
| Drive System | Linear stepping electronic piston control |
| Pipetting Modes | 12 (forward, reverse, mix, dilute, repetitive, stepper, etc.) |
| Memory Storage | 6 user-defined programs |
| Speed Settings | 3 (Low / Medium / High) |
| Display | 1-inch tempered LCD glass |
| Tip Cone Material | 304 grade stainless steel (per channel) |
| Tip Compatibility | Universal — accepts standard tip brands |
| Tip Ejection | Manual |
| Battery | 4.2V Li-ion, 800 mAh, detachable |
| Battery Life | 8 hours per full charge |
| Charging Time | Approximately 2 hours |
| Charger | USB Type-A and Type-C |
| USB Interface | Mini USB |
| Autoclavability | Lower section at 121°C, 1 bar, 20 minutes |
| UV Sterilization | Whole device |
| Calibration Standard | DIN EN ISO 8655-2 (ISO 17025 accredited lab) |
| Certifications | CE, ISO 9001, ISO 13485, ISO 17025 |
| Carousel Stands | Available separately |
| Warranty | 1-Year Free Replacement |
