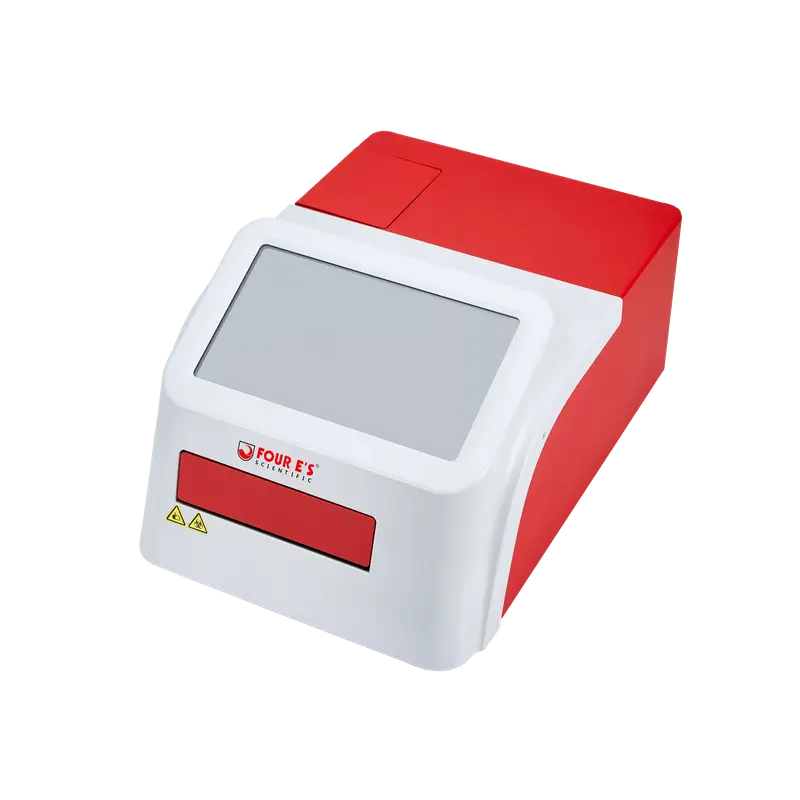

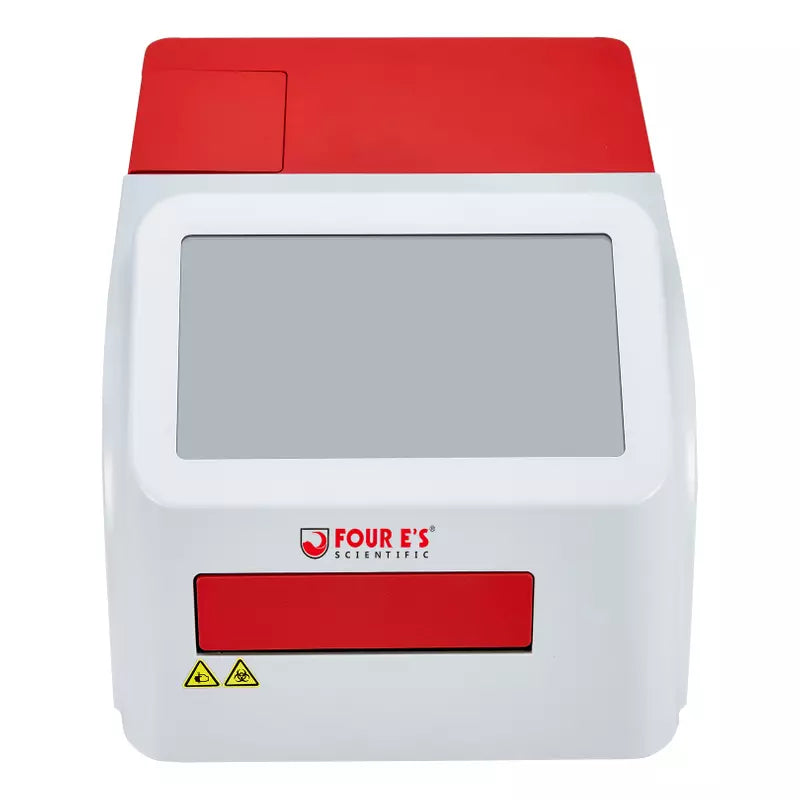

Surge Scientific · Model MMR-800 · Microplate Reader · ELISA & Absorbance
Microplate Reader
96 / 384-Well · 8-Position Filter Wheel · 7-inch Touchscreen · 7-Second Plate Read
High-Quality Photometer · Pre-Loaded 405/450/620 nm Filters · Optional Filters 340–820 nm · Built-in Software · Optional Incubator (Ambient+4°C to 50°C)
The MMR-800 is the microplate reader engineered for routine ELISA and absorbance-based assays with the throughput and configurability that production labs actually need. 96-well plate read in 7 seconds (fast mode), 384-well plate in 13 seconds. 8-position filter wheel ships pre-loaded with the three workhorse ELISA filters — 405 nm, 450 nm, 620 nm — and accepts 17 additional optional filters from 340 nm to 820 nm for any colorimetric or biochemical assay. 7-inch color touchscreen with intuitive built-in software handles experiment design, plate layout, and analysis without needing a connected PC.
Why Filter Wheel Architecture Still Wins for Routine ELISA
Two optical architectures dominate microplate reading. Filter-wheel readers use a rotating wheel of bandpass filters, each tuned for a specific wavelength — they're fast, robust, and produce clean signals at the wavelengths they're designed for. Monochromator readers use a tunable diffraction grating that sweeps wavelengths — flexible, but slower and with weaker signals at any given wavelength compared to a dedicated filter.
For routine ELISA, BCA, Bradford, and standard colorimetric assays, filter-wheel architecture wins on every metric that matters: signal-to-noise ratio, read speed, reproducibility, and cost. The MMR-800's 8-position filter wheel ships ready-to-run with the three filters that handle 90% of ELISA workflows (405 nm for ABTS, 450 nm for TMB, 620 nm for reference subtraction). When your assay menu expands, swap in any of 17 optional filters from 340 to 820 nm — including 340 (NADH/NADPH), 414, 492, 540, 595 (Bradford), 650 (PNP), and into the visible range. Eight slots, swap as needed — no buying a second instrument for every new assay.
7-Second 96-Well Read
96-well plate in 7 seconds (fast mode), 13 seconds (normal mode). 384-well plate in 13/34 seconds. Production-line throughput for high-volume ELISA labs.
8-Position Filter Wheel
3 pre-loaded filters (405/450/620 nm) + 5 open slots for optional filters. 17 additional filters available across 340–820 nm — covers any colorimetric assay.
7-inch Touchscreen
7-inch color touchscreen with intuitive interface. Built-in software handles plate layout, analysis, calibration curves — no PC connection required for routine use.
Optional Incubator
Optional integrated incubator — temperature range ambient +4°C to 50°C. Run kinetic ELISA assays, enzyme kinetics, or temperature-sensitive immunoassays without external incubation.
"7 seconds. 96 wells. 8 filter slots. The microplate reader that turns ELISA from a bottleneck into a non-event."
Key Features

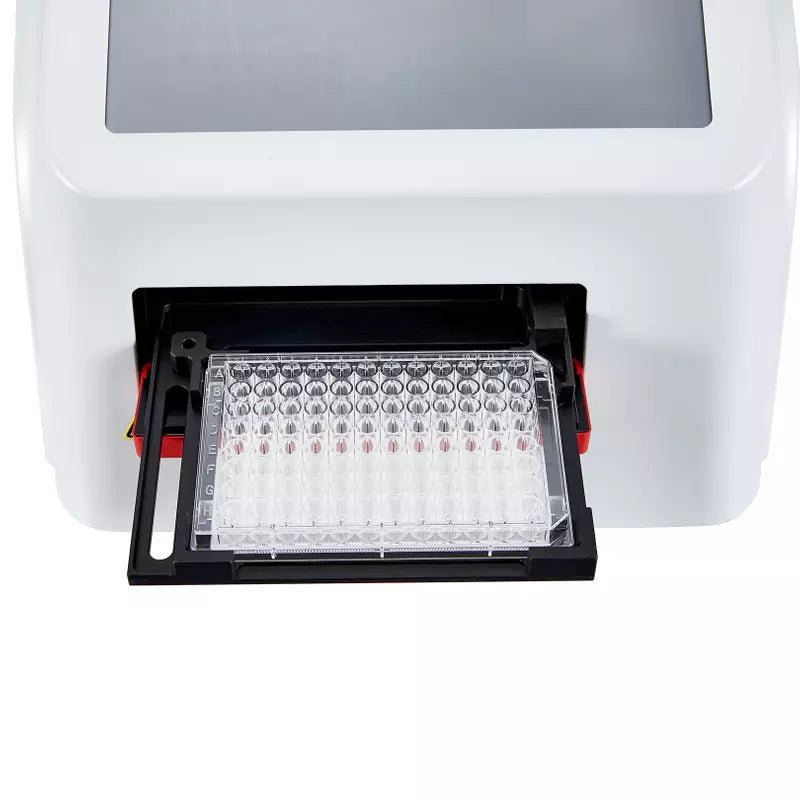

- 96-well and 384-well plate compatible
- High-quality photometer optical system
- Built-in powerful software
- 7-inch color touchscreen interface
- Intuitive operation — no PC required
- Ideal for qualitative ELISA
- Ideal for quantitative ELISA
- 96-well fast mode: 7 seconds
- 96-well normal mode: 13 seconds
- 384-well fast mode: 13 seconds
- 384-well normal mode: 34 seconds
- 8-position filter wheel
- 3 filters pre-installed: 405 nm, 450 nm, 620 nm
- 17 optional filters available
- Wavelength range 340–820 nm
- Optional filters: 340, 375, 414, 492, 520, 530, 540, 550, 560, 570, 595, 630, 650, 690, 740, 750, 820 nm
- Filters easily swapped — no service required
- Optional integrated incubator
- Incubator range: ambient +4°C to 50°C
- Suitable for kinetic assays
- Standard curve generation built-in
- Multiple curve fitting algorithms
- Data export (USB)
- Suitable for ELISA, Bradford, BCA, Lowry, MTT
- 2-year all-inclusive warranty
Ideal Applications
Clinical & Diagnostic ELISA
Clinical diagnostic labs running antibody/antigen ELISA panels — infectious disease, autoimmune, hormone, allergy testing — at production volume.
Research & Biochem Labs
Protein quantification (Bradford / BCA / Lowry), enzyme kinetics, MTT cell viability assays, and any 96/384-well colorimetric workflow.
Food Safety / Industrial QC
Food allergen ELISA, mycotoxin testing, gluten testing, and industrial quality control where colorimetric assay throughput drives sample turnaround.
What's in the Box
MMR-800 ships with three workhorse ELISA filters pre-loaded. Optional filters and incubator available separately.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MMR-800 |
| Plate Compatibility | 96-well · 384-well |
| Optical System | High-quality photometer + filter wheel |
| Filter Wheel | 8 positions |
| Pre-Installed Filters | 405 nm · 450 nm · 620 nm |
| Optional Filters Available | 17 — wavelengths 340 / 375 / 414 / 492 / 520 / 530 / 540 / 550 / 560 / 570 / 595 / 630 / 650 / 690 / 740 / 750 / 820 nm |
| Wavelength Range | 340 – 820 nm |
| 96-Well Read Time (Fast) | 7 seconds |
| 96-Well Read Time (Normal) | 13 seconds |
| 384-Well Read Time (Fast) | 13 seconds |
| 384-Well Read Time (Normal) | 34 seconds |
| Display | 7-inch color touchscreen |
| Software | Built-in + optional PC software |
| Optional Incubator Range | Ambient +4°C up to 50°C |
| Applications | ELISA · Bradford · BCA · Lowry · MTT · Kinetic Assays |
| Warranty | 2-year all-inclusive |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The MMR-800 is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, filter selection, ELISA protocol setup, incubator configuration, custom assays, and technical assistance.
