Surge Scientific · PCR96GX3 · OptimaFlex Multi-Block Gradient PCR · 3×32-Well Blocks

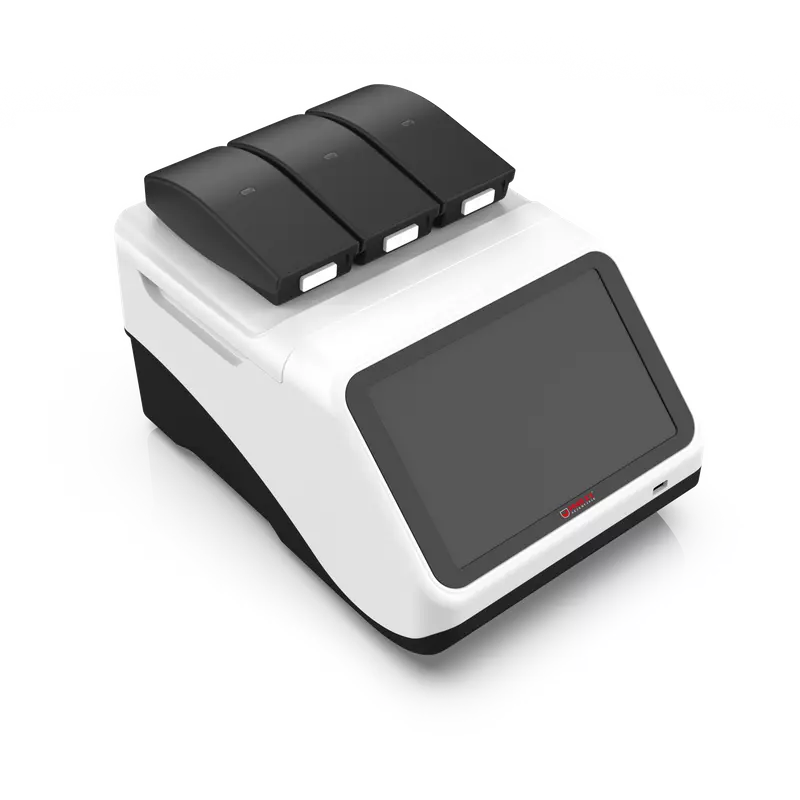

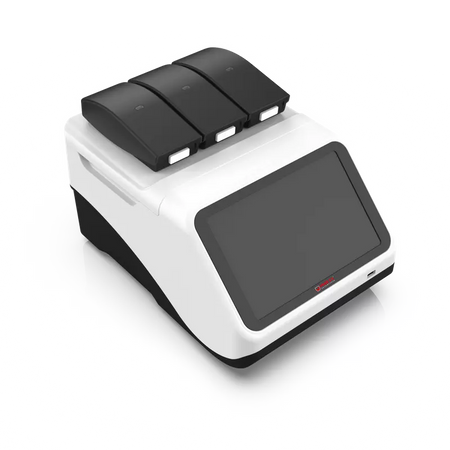

OptimaFlex 3×32-Well Blocks Gradient PCR (PCR96GX3)
3×32-Well Blocks · Triple Independent Operation · Three Parallel Protocols · 10.1-inch Touchscreen
Three parallel independent PCR experiments — maximum protocol-throughput multiplier · OptimaFlex Modular Chassis · three independent 32-well blocks · Programmable Gradients Per Block · Adaptive Heated Lid for 0.2 mL PCR Tubes · Peltier-Driven Thermal Control · 10.1-inch High-Resolution LCD Touchscreen · Automatic Power Failure Recovery · Interchangeable Blocks — Upgrade to PCR96GX1 / PCR96GX2 / PCR96GX3 Configurations
The OptimaFlex with PCR96GX3 3×32-Well Blocks is the maximum-flexibility format of the OptimaFlex modular thermal cycler family. Three independent 32-well blocks — each running its own protocol, gradient, and heated lid simultaneously. Three researchers running three different PCR experiments at the same time, each on one third of the chassis. Or one researcher running three protocol variants of a method development study truly in parallel for direct apples-to-apples comparison. The 3×32-well configuration is the most flexible format in the OptimaFlex line — turning what would be three sequential thermal cycler runs into one parallel run on a single chassis. Each block has its own programmable gradient and adaptive heated lid for 0.2 mL PCR tubes. Driven by Peltier elements, monitored on a 10.1-inch high-resolution LCD touchscreen, with automatic power failure recovery for all three blocks independently.
Why Three Independent Parallel Protocols Replaces Three Thermal Cyclers
Three researchers, three thermal cyclers, three benches. That's the standard solution to multi-user PCR access in growing labs — and it costs $12,000-20,000 in equipment plus three benches of footprint. The cheaper version — three researchers sharing one cycler — runs into scheduling conflicts that turn 30-minute experiments into half-day waits. Neither approach scales well past 3-4 researchers, and both consume budget that could go to other instruments.
The PCR96GX3 3×32-Well configuration is the productivity unlock for growing molecular biology labs. One chassis, three independent thermal blocks, three completely different protocols running truly in parallel. Block 1 runs at 58°C annealing for 30 cycles. Block 2 runs at 62°C annealing for 35 cycles with different denaturation profile. Block 3 runs gradient optimization across 16 wells while a 16-well control runs the optimized protocol. Three researchers share one footprint without protocol-conflict scheduling. Or one researcher runs three protocol variants of a method development study truly in parallel — direct apples-to-apples comparison on the same chassis at the same time, eliminating the day-to-day chassis-variability that confounds sequential method development. The 3×32-well configuration replaces what would otherwise be three thermal cyclers, three benches, and three scheduling calendars.
3×32-Well Independent Blocks
Three 32-well thermal blocks running independently. Each block has its own protocol, gradient, and heated lid. Three researchers, three protocols, one footprint — replaces three thermal cyclers with one chassis.
Programmable Gradient
Programmable gradient temperature across the block for primer optimization. Adaptive heated lid auto-adjusts for 0.2 mL PCR tubes — optimal sealing without manual lid adjustment between runs.
10.1-inch Touchscreen
10.1-inch high-resolution LCD touchscreen for intuitive multi-block monitoring and protocol setup. Visual real-time temperature display for each block with cycle-progress indicators.
Power Failure Recovery
Automatic power failure recovery — when power restores after an outage, the OptimaFlex resumes interrupted protocols at the exact cycle and temperature where they stopped. No lost runs.
"Three independent PCR protocols running truly in parallel. Replaces three thermal cyclers with one chassis. The 3×32-well configuration that maximizes equipment utilization in growing molecular biology labs."
Key Features
- OptimaFlex modular gradient PCR thermal cycler
- 3×32-Well Blocks configuration (PCR96GX3)
- Three independent 32-well blocks
- Independent per-block operation
- Independent per-block protocols
- Independent per-block gradients
- Independent per-block heated lids
- Programmable gradient temperature per block
- Adaptive heated lid for 0.2 mL PCR tubes
- Peltier-driven thermal control
- Fast thermal ramp rates
- 10.1-inch high-resolution LCD touchscreen
- Multi-block real-time monitoring
- Visual cycle-progress indicators
- Intuitive touchscreen protocol setup
- Automatic power failure recovery
- Resumes interrupted protocols on power restore
- Interchangeable block architecture
- Compatible with PCR96GX1 (1×96-well) configuration
- Compatible with PCR96GX2 (2×48-well) configuration
- Compatible with PCR96GX3 (3×32-well) configuration
- Block swap requires no recalibration
- Suitable for high-throughput PCR / qPCR / RT-PCR
- Suitable for genotyping / SNP / sequencing prep
- Suitable for method development workflows
- 1-year manufacturer warranty
Ideal Applications
Multi-Project Research Cores
Research cores running 3+ parallel projects with different protocols — the 3×32-well configuration eliminates the scheduling conflicts and equipment-sharing bottlenecks that plague multi-PI molecular biology labs.
Method Development Triple-Parallel
Method development workflows comparing 3 protocol variants on the same chassis simultaneously — eliminates day-to-day chassis variability that confounds sequential method development across multiple cycler runs.
Triple-Parallel Optimization
Run gradient optimization on Block 1, validation on Block 2, and production protocol on Block 3 — all simultaneously. The triple-parallel format that turns 6-hour sequential workflows into 2-hour parallel pipelines.
Block Selection Guide
The OptimaFlex platform offers three interchangeable block configurations. Best for: multi-PI cores and method development teams. Pick this block when your lab has 3+ active PCR projects, or when method development workflows benefit from triple-parallel chassis-controlled comparisons. If your workflow needs change later, the OptimaFlex chassis accepts any of the other two configurations as a swap-in upgrade — no need to purchase a second thermal cycler.
What's in the Box
The OptimaFlex with 3×32-Well Blocks ships configured to the PCR96GX3 block layout. Additional block configurations available separately for swap-as-needed flexibility.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | OptimaFlex with PCR96GX3 |
| Product Family | OptimaFlex Multi-Block Modular Gradient PCR |
| Block Configuration | 3×32-Well Blocks |
| Block Count | Three independent 32-well blocks |
| Block Independence | Each block runs its own protocol, gradient, heated lid simultaneously |
| Tube Format | 0.2 mL PCR tubes / strips / plates |
| Gradient | Programmable per block |
| Heated Lid | Adaptive — auto-adjusts for tube height |
| Thermal Control | Peltier elements |
| Display | 10.1-inch high-resolution LCD touchscreen |
| Power Failure Recovery | Automatic — resumes on power restore |
| Block Architecture | Interchangeable — chassis accepts PCR96GX1 / PCR96GX2 / PCR96GX3 |
| Block Swap | No recalibration required |
| Warranty | 1-year manufacturer warranty |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The OptimaFlex with PCR96GX3 is backed by a 1-year manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, block configuration upgrades, protocol setup guidance, calibration verification, and technical assistance.
