Surge Scientific · Model WXD100101 · Advanced Paraffin Wax Dispenser · 10 L Capacity
Advanced Paraffin Wax Dispenser
10 L (2.6 Gallon) · PID Controller · Dual Heating · Heated Faucet · LED Display
2.6-Gallon (10 L) Capacity · LED Display Timer + Temperature · PID Temperature Controller · Bottom + Side Dual Heating · Adjustable Faucet Heating · Memory & Auto-Restoration · Over-Temperature Alarm (+5°C)

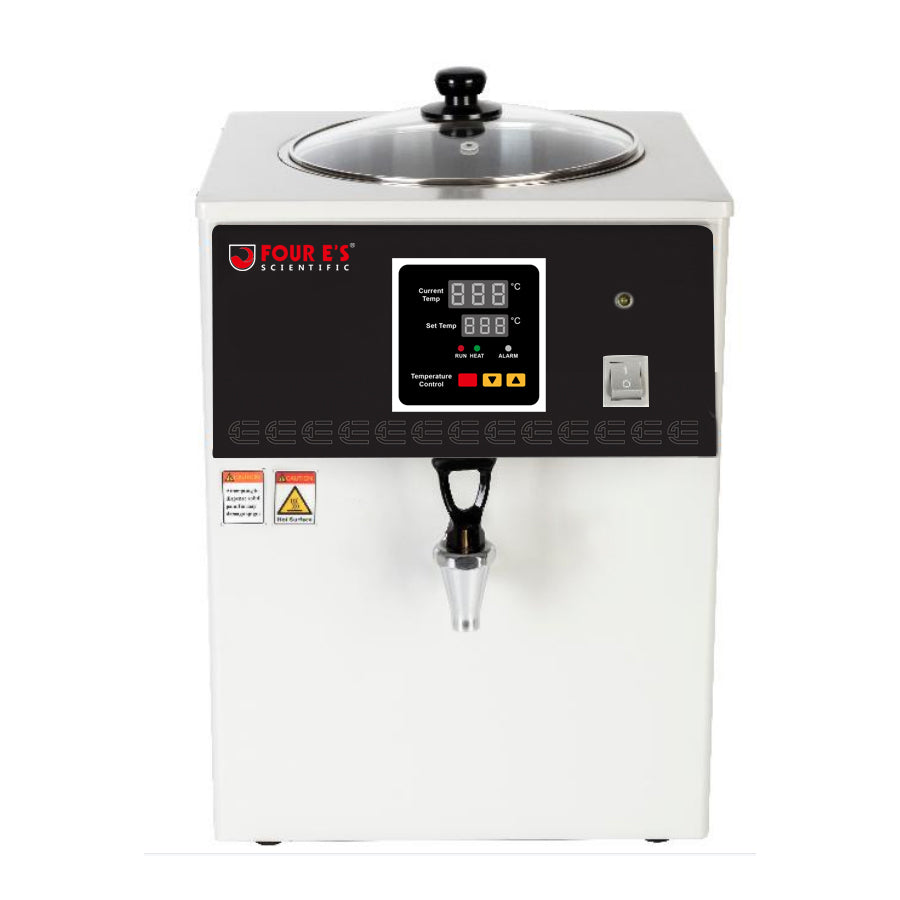

The WXD100101 Advanced Paraffin Wax Dispenser is the 10 L (2.6-gallon) heated wax reservoir built for histology embedding centers that need continuous, uniform, on-demand molten paraffin with the temperature precision that high-quality block embedding requires. PID (Proportional-Integral-Derivative) temperature controller + integrated temperature sensors maintain set temperature with minimal fluctuations — eliminating the temperature drift that produces inconsistent block hardness and embedding quality. Dual heating system — both bottom and side heating elements — delivers rapid melt + uniform heating across the full reservoir. Adjustable faucet heating via rear knob prevents tap clogging during dispense. LED display for at-a-glance timer and temperature status. Memory & auto-restoration resumes the set temperature after power cycling. Over-temperature alarm activates if the unit exceeds set value by 5°C.
Why PID Control + Dual Heating Defines Embedding Block Quality
The temperature uniformity of your wax dispenser determines the consistency of your embedding blocks. Embedding paraffin needs to be at a precise melting state — typically 56–60°C, depending on the wax grade — with uniform temperature across the reservoir. If the wax near the heating element is 65°C while the wax at the surface is 54°C, you get thermal stratification: the histotech draws hotter wax for one block and cooler wax for the next, and the resulting blocks have different hardness, different sectioning behavior on the microtome, and different ribbon quality. Multiply that across a 100-block day, and your section quality is unpredictable.
The WXD100101 attacks this two ways. Dual heating elements (bottom + side) heat the reservoir from two directions instead of one — eliminating the thermal gradient that single-bottom heaters produce. Combined with a PID controller using temperature sensor feedback, the unit holds the set temperature with minimal fluctuations — instead of the bang-bang on/off thermostat control that produces ±3–5°C swings on cheaper dispensers. The result: uniform wax temperature throughout the reservoir, every dispense the same temperature as the last. Add the adjustable faucet heating (preventing tap solidification mid-dispense), memory + auto-restoration (no reprogramming after power cycles), and over-temperature alarm (5°C over set point), and the dispenser stops being the variable in your embedding workflow.
10 L (2.6 Gal) Capacity
10-liter (2.6-gallon) capacity — sized for high-volume histology embedding centers that need continuous wax availability across a full shift without refill interruption.
PID Controller + Dual Heating
PID temperature controller with sensor feedback maintains set temp with minimal fluctuations. Dual heating (bottom + side) eliminates thermal stratification — uniform wax temperature throughout the reservoir.
Adjustable Faucet Heating
Rear knob adjusts faucet heating intensity — prevents wax solidification at the tap during dispense. No clogging mid-block-pour, no interrupted workflow.
LED · Memory · Alarm
LED display shows current timer + temperature at a glance. Memory & auto-restoration resumes set temp after power cycling. Over-temperature alarm activates if temp exceeds set value by 5°C.
"PID temperature control. Dual bottom + side heating. Heated faucet. The wax dispenser that stops being the variable in your embedding block consistency."
Key Features
- Histology paraffin wax dispenser
- 10 L (2.6-gallon) capacity
- Continuous-use sized reservoir
- PID temperature controller
- Integrated temperature sensors
- Minimal temperature fluctuations
- Bottom heating element
- Side heating element
- Dual-heating uniform temperature
- Rapid wax melting
- Eliminates thermal stratification
- Adjustable faucet heating intensity
- Rear knob faucet heat control
- Prevents tap clogging
- Uninterrupted wax flow
- LED display
- Shows timer + temperature status
- At-a-glance status updates
- Memory function
- Auto-restoration after power cycling
- Over-temperature alarm (+5°C above set)
- Over-temperature protection
- Suitable for histology embedding centers
- Suitable for high-volume workflows
- Suitable for clinical / research / industrial labs
- 2-year all-inclusive warranty
Ideal Applications
Clinical Histology Centers
Clinical pathology embedding centers — high-throughput tissue embedding with PID-grade wax temperature consistency for reproducible block quality and section ribbon performance.
Research Histology Cores
Research histology core facilities, animal pathology, and tissue banking — large reservoir capacity supports full-day embedding sessions without refill interruption.
Teaching & Training Labs
Histotechnology training programs — stable PID-controlled temperatures + over-temperature alarm provide a teaching-environment-appropriate safety profile.
What's in the Box
WXD100101 ships ready for histology embedding center use — 10 L reservoir, dual heating, PID controller, heated faucet, LED display all integrated.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Advanced Paraffin Wax Dispenser |
| Model / SKU | WXD100101 |
| Capacity | 10 L (2.6 gallons) |
| Temperature Controller | PID (Proportional-Integral-Derivative) |
| Temperature Sensors | Integrated |
| Heating System | Dual — bottom + side elements |
| Heating Profile | Rapid & uniform |
| Faucet Heating | Adjustable intensity (rear knob) |
| Display | LED — timer + temperature |
| Memory Function | Yes — auto-restoration after power cycle |
| Over-Temperature Alarm | Activates at +5°C above set value |
| Over-Temperature Protection | Yes |
| Warranty | 2-year all-inclusive |
Detailed numerical specifications (operating temperature range, heat-up time, dimensions, weight, power consumption) available on request — contact our product specialists for the full technical datasheet.
