Surge Scientific · Advanced Slide Dryer · High-Capacity Histology

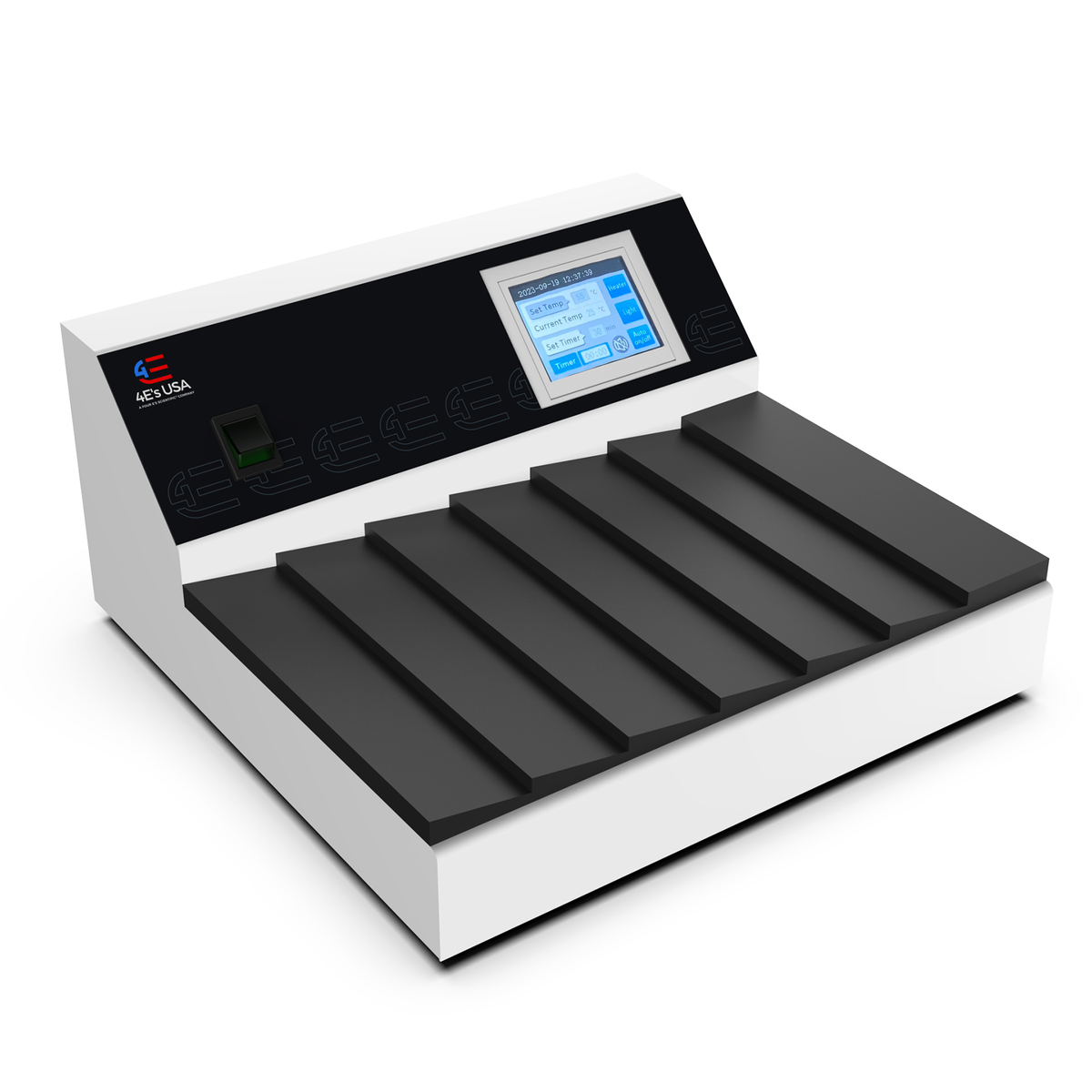

Advanced Slide Dryer
56 Slides · Angled Tray · HD Touchscreen · Reversible
7 Blocks × 8 Slides · 0–99°C · ±1°C · Auto On/Off Scheduling · Nonvolatile Memory · Left/Right-Handed Design
Engineered around what high-volume histology labs actually asked for. 56-slide capacity (7 blocks × 8 slides) for clinical throughput. An angled slide storage area so technicians aren't scraping fingernails getting slides off a flat plate. A reversible warming tray that works for left- AND right-handed users. A high-definition color touchscreen with Auto On/Off scheduling that warms the unit up 20 minutes before shift start — so your first slides of the day land at setpoint, not ambient.
Why the Ergonomics Matter in High-Volume Labs
In a histology lab that processes hundreds of slides per day, every small friction point compounds. A flat working plate means technicians scrape the edge to pick slides up — slow, fingernail-breaking, and damaging to tissue labels. A fixed-orientation tray forces left-handed techs to reach across their bodies 500 times a shift. A small-capacity dryer means multiple batches where one should be — and the "warm-up delay" at shift start where no one can start slides for 20 minutes because the dryer is still coming up to temp.
The Advanced Slide Dryer solves each of these specifically. The angled slide storage area lets you place and pick up slides cleanly — no scraping. The reversible warming tray flips orientation for left-handed or right-handed workflows — so the slide pick-up is always on the dominant-hand side. The 56-slide capacity (7 blocks × 8 slides, conventional 1×3" slides) handles a morning's batch in a single load. And the Auto On/Off scheduling has the unit warm and ready when the first tech arrives — no overnight operation needed, no shift-start delay.
56-Slide Capacity
7 blocks × 8 slides per block = 56 conventional 1×3" slides per batch. Designed for clinical and high-throughput histology workflows.
Angled Storage + Reversible Tray
Angled slide storage for easy pickup — no scraping. Reversible warming tray flips for left-handed AND right-handed users — a genuine ergonomic difference not found on standard dryers.
HD Color Touchscreen
High-definition color touchscreen with intuitive interface. Temperature 0–99°C with ±1°C microprocessor accuracy, calibration menu, timer, and alarms.
Auto On/Off Scheduling
Pre-set the unit to warm up 20 minutes before arrival — no overnight operation, no shift-start delay. Nonvolatile memory retains your setpoints through power cycles.
"56 slides. Angled placement. Left- or right-handed. Warmed up before you arrive." — The four design changes that turn a shift's worth of slide drying from friction into routine.
Key Features
- 56-slide capacity (conventional 1×3" slides)
- 7 blocks × 8 slides per block
- Angled slide storage area
- Easy slide placement and pickup
- Reversible warming tray
- Left-handed or right-handed use
- High-definition color touchscreen
- User-friendly intuitive interface
- Temperature range 0–99°C
- Microprocessor temperature control
- Temperature accuracy within ±1°C
- Finely-tuned heating system
- Wrinkle-free slide preparation
- Advanced over-temperature protection
- Heater auto-shutoff on safety trigger
- Built-in alarms
- Timer function
- Auto turn-on scheduling
- Auto turn-off scheduling
- Pre-warm 20 min before shift
- No overnight operation needed
- Nonvolatile memory
- Retains setpoints after power-off
- Temperature calibration menu
- Quiet operation
- 2-year all-inclusive warranty
- In stock — NJ warehouse
Ideal Applications
Clinical Histology
High-volume diagnostic labs running hundreds of slides per shift — 56-slide batch capacity handles a morning's workload in a single load.
Pathology & IHC
Tumor section drying before immunohistochemistry, routine pathology slide prep, and diagnostic workflows where capacity and precision both matter.
Shift-Start Benches
Auto On/Off scheduling pre-warms the dryer for shift start — first slides of the day land at setpoint, not at ambient temperature. No overnight operation required.
What's in the Box
The Advanced Slide Dryer ships ready for bench use — reversible warming tray comes pre-installed, with orientation adjustable for left- or right-handed workflows.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Advanced Slide Dryer — High Capacity |
| Slide Capacity | 56 conventional 1×3" slides |
| Block Configuration | 7 blocks × 8 slides per block |
| Storage Area | Angled — for easy placement and pickup |
| Tray Design | Reversible — left-handed or right-handed use |
| Temperature Range | 0–99°C |
| Temperature Accuracy | ±1°C |
| Control | Microprocessor |
| Display | High-definition color touchscreen |
| Interface | Intuitive — user-friendly, no-manual operation |
| Memory | Nonvolatile — retains setpoints after power-off |
| Calibration | Built-in calibration menu |
| Scheduling | Auto On/Off — pre-warm 20 min before shift |
| Timer | Built-in process timer |
| Safety Features | Advanced over-temperature protection · heater auto-shutoff · built-in alarms |
| Noise Level | Quiet operation |
| Warranty | 2-year all-inclusive |
| Availability | In stock — NJ warehouse |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The Advanced Slide Dryer is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, replacement blocks, accessory ordering, and technical assistance.
