Surge Scientific · Model MI0102001D · "King Kong" Series

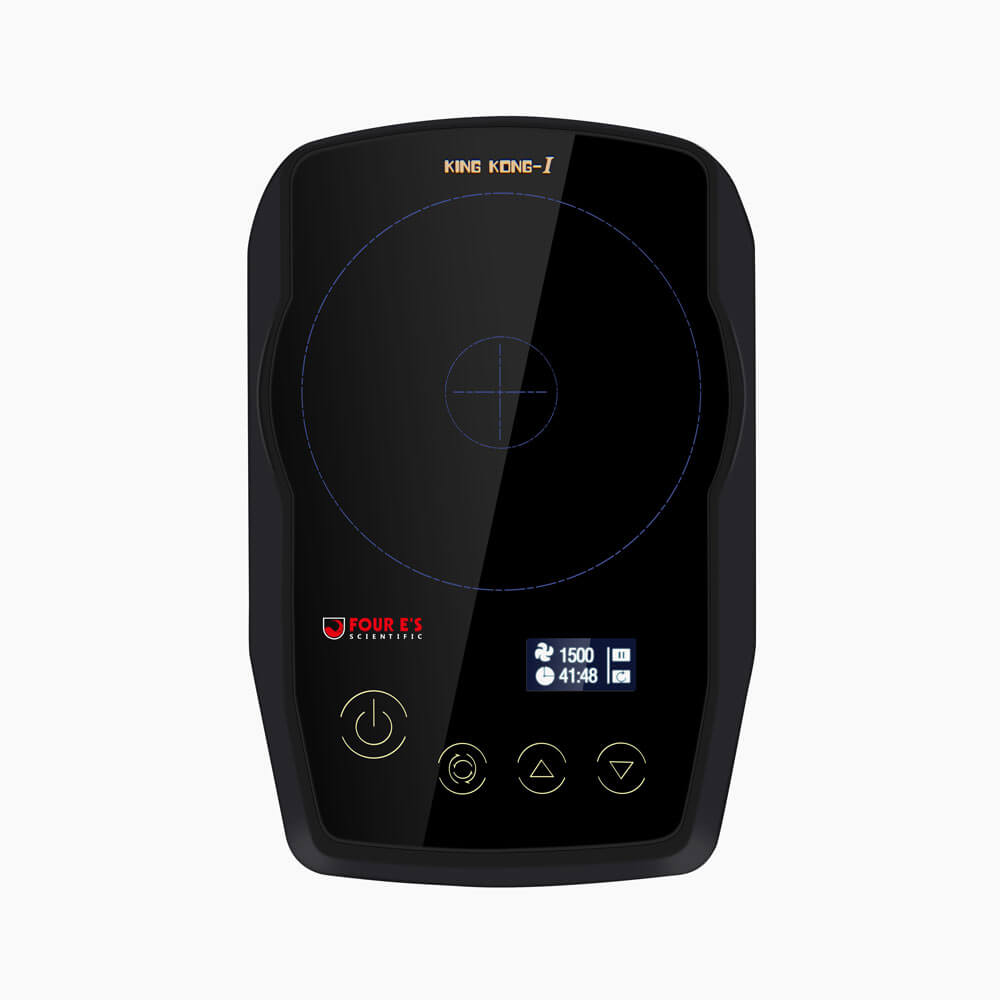

Ultra-Flat Mini Glass Top Magnetic Stirrer
OLED Digital Display
Wear-Free Magnetic Coil Drive · 15–1500 RPM · OLED Speed + Timer · Black Tempered Glass · Touch-Key Control
Most mini stirrers ask you to set a speed by feel — twist a knob until the vortex looks right and hope it stays that way. The MI0102001D replaces guesswork with a readable OLED display, a sealed touch key, and a precise digital setpoint as low as 15 RPM. Underneath the black tempered glass is a wear-free magnetic coil drive with no moving parts and no service interval — built to outlast every cheap mini stirrer in your inventory.
Why Digital Control Changes Mini Stirrer Work
Analog mini stirrers are fine until you need to actually reproduce a stir condition — at which point a knob position and a vortex shape become the only record of what speed you ran. Lower setpoints are even worse: most analog units can barely hold 100 RPM steady, ruling out the gentle suspensions and slow dissolutions where minimal shear is the whole point.
The MI0102001D pairs the same wear-free magnetic coil drive with a touch-key interface and an OLED display that shows both setpoint and timer. You dial in 50 RPM or 1500 RPM with the same precision, write the number into your notebook, and reproduce the run a week later without guesswork. Lower bound dips down to 15 RPM — slow enough for sensitive cell-line work and gentle resin equilibration.
OLED Speed + Timer
Bright OLED shows actual speed and elapsed time in real time. Set it precisely with the touch key, log it in your notebook, reproduce it next week — no analog guesswork.
Wear-Free Coil Drive
Magnetic coil technology — no motor, no brushes, no bearings. The same drive that's running today will run unchanged for years. Nothing to wear out, nothing to service.
Black Tempered Glass
Special waterproof, anti-shatter tempered glass plate dissipates heat, resists chemical spills, and wipes clean instantly. Works with hot vessels straight off a hotplate.
Ultra-Flat Footprint
Just 13 mm tall — the lowest profile in the category. Lives permanently in fume hoods, biosafety cabinets, and cold rooms where standard stirrers can't fit.
"15 RPM at the bottom. 1500 RPM at the top. Every value in between, repeatable." — The OLED + touch-key combo gives you a precise digital setpoint across the full range — from gentle cell suspensions to vigorous mixing — with the same wear-free drive on every run.
Key Features
- OLED display — speed and time
- Touch-key digital control
- Wear-free magnetic coil drive
- Zero moving parts in the drive system
- Speed range 15–1500 RPM
- Auto-reverse rotation every 30 seconds
- Φ100 mm tempered glass plate
- Waterproof, anti-shatter glass surface
- Heat-dissipating black glass plate
- Ultra-flat 13 mm profile
- IP65 ingress protection (DIN EN 60529)
- Max stirring volume 1000 mL (H₂O)
- Max stir bar 25 mm
- 3 W motor rating output
- Timer range up to 99h 99min
- Working temp range 5–40°C
- Quiet operation — fits shared benches
- Fume hood and biosafety cabinet compatible
- Easy to clean — wipes down with any disinfectant
- Available in Black, White, or Black & White
Ideal Applications
Cell & Tissue Work
Gentle suspension at 15–100 RPM for cell-line work, organoid handling, and slow reagent equilibration where high shear damages samples.
Reproducible Methods
Method development and SOP-driven workflows that need a precise, recordable RPM setpoint — not a knob position.
Hood & Cold-Room Use
Ultra-flat IP65 design fits inside fume hoods, biosafety cabinets, and cold rooms where standard stirrers won't clear or won't survive spills.
What's in the Box
The MI0102001D ships ready for bench use — no add-on accessories required to start your first run.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model / SKU | MI0102001D |
| Type | Digital — touch-key + OLED display |
| Stirring Positions | 1 |
| Working Plate Material | Tempered glass (black, anti-shatter, waterproof) |
| Set-Up Plate Dimension | Φ100 mm (3.94") |
| Display | OLED — speed and time |
| Speed Range | 15–1500 RPM |
| Reverse Rotation | Automatic — every 30 seconds |
| Max Stirring Quantity | 1000 mL (H₂O) |
| Max Stirring Bar | 25 mm |
| Drive Technology | Magnetic coil — wear-free, no moving parts |
| Motor Rating Output | 3 W |
| Time Range | 0–99h 99min |
| Ingress Protection | IP65 (per DIN EN 60529) |
| Working Ambient Temp | 5–40°C |
| Working Relative Humidity | ≤ 80% |
| Dimensions (W × D × H) | 117 × 180 × 13 mm (4.6 × 7.1 × 0.5 in) |
| Color Options | Black · White · Black & White |
| Included Accessories | Power adapter · Stir bar · User manual |
Surge Scientific Warranty & Support
This instrument is sold through Surge Scientific, your trusted laboratory equipment partner. Our product specialists are available Monday–Friday for assistance. The MI0102001D is backed by a 2-year all-inclusive manufacturer's warranty. Contact us at info@surgescientific.com or reach out directly to our support team at 855.943.3344 for pre-sales questions, color selection, stir-bar selection, quotes, and technical assistance.
